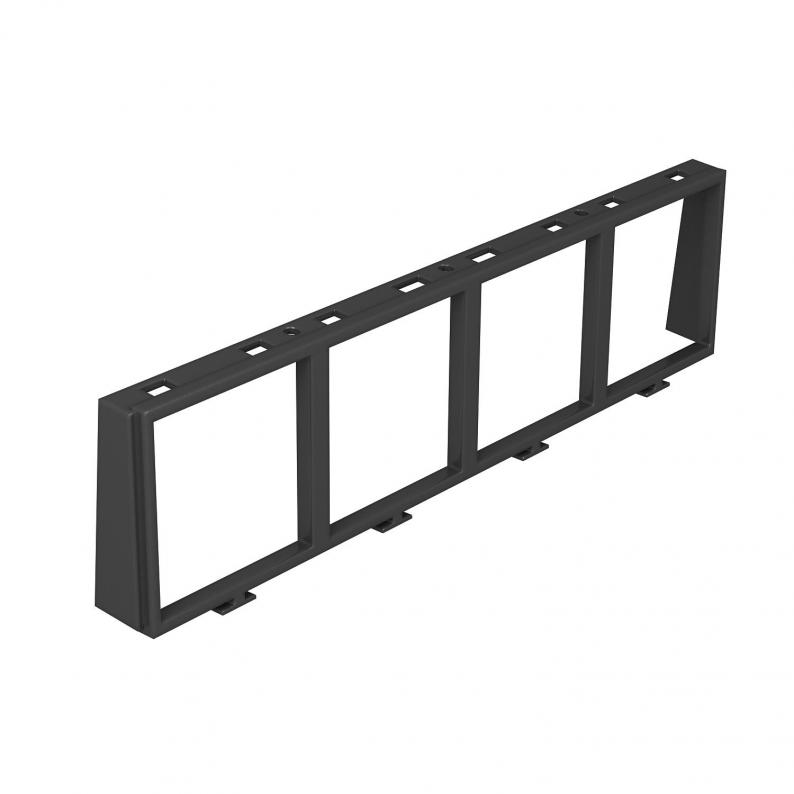

Installation frame for four single Modul 45® devices
Type MT45V 4
|Item no. 7408670
|EAN 4012195674498
Item no. / Type
Monte edilebilir cihaz sayısı
Smallest selling unit: 5 piece
5piece
piece
Description
For the installation of 4 individual Modul 45 devices for System 55 service outlets with mounting support for vertical installation of Modul 45 devices.
The installation frame is designed for use with 0° sockets (normal installation position, contact openings on right and left) and their use in conjunction with straight connectors (not angled connectors).
The installation frame is designed for use with 0° sockets (normal installation position, contact openings on right and left) and their use in conjunction with straight connectors (not angled connectors).
Technical data
Technical data
| Zemin kaplayıcı döşeme altı kablo kanalı için uygundur | no |
|---|---|
| Zemin ile aynı seviyedeki kapalı döşeme altı kablo kanalı için uygundur | no |
| Monte edilebilir cihaz sayısı | 4 |
| Conta montaj seçeneği | no |
| Taban sacı | no |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Accessory mounting type | Lock |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0765 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
Variants
Type
Monte edilebilir cihaz sayısı
Item no.
MT45V 4
4
7408670
MT45V 3
3
7408672
MT45V 3+1
2
7408680
MT45V 2+2
2
7408682
Monte edilebilir cihaz sayısı
MT45V 4
Item no.
7408670
Monte edilebilir cihaz sayısı
4
MT45V 3
Item no.
7408672
Monte edilebilir cihaz sayısı
3
MT45V 3+1
Item no.
7408680
Monte edilebilir cihaz sayısı
2
MT45V 2+2
Item no.
7408682
Monte edilebilir cihaz sayısı
2
