Installation unit for series-mounted devices, 70 x 210 mm

Installation unit for series-mounted devices, 70 x 210 mm

Type IKR12RW70210
Item no. 6288334
EAN 4012196691555
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

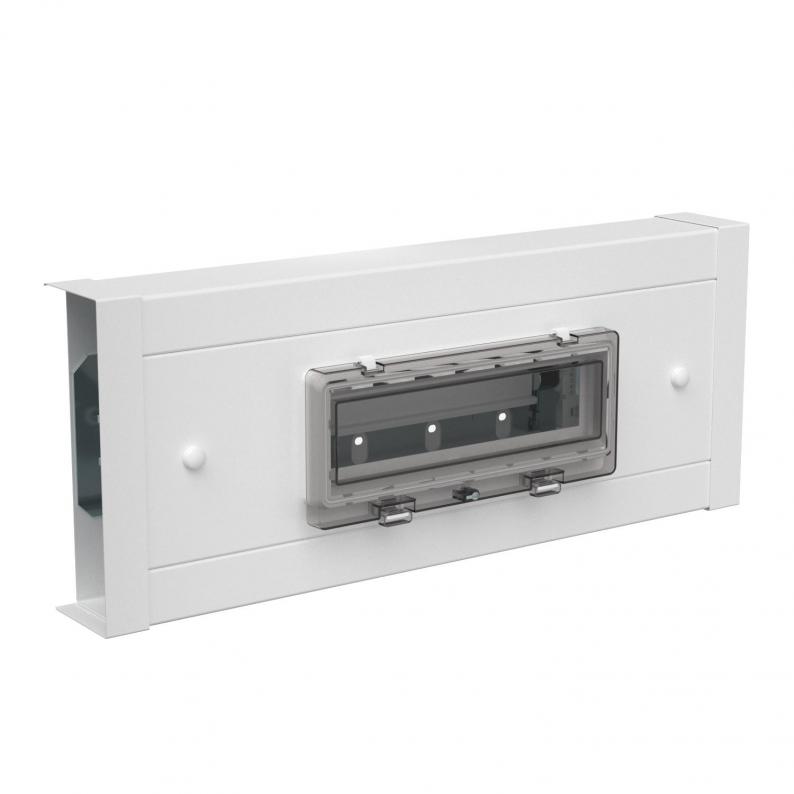

Installation unit made of sheet steel for installation in the trunking section of device installation trunking of the corresponding system size.

Acceptance of series-mounted devices with a total width of 12 PUs on hat rails. Incl. N and PE rails with screwless terminals. The foldable transparent hood can be locked.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

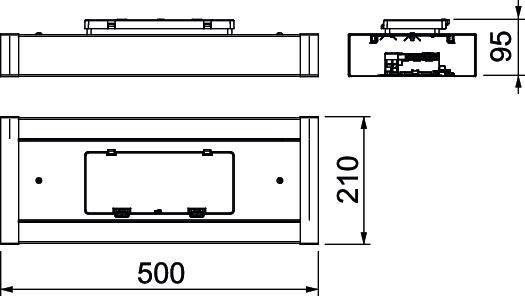

Dimensions

Length500 mm
Width210 mm
Height95 mm

Technical data

Halogen-freeyes
Number of units12
Suitable for duct depth70
Number of rows1
Transparent lidyes
DIN railyes
With mounting plateno
Extension optionno
Type of coverTransparent
Cable entryyes
ROHS-conformantExempt
Dimension95x210x500
SurfacePowder-coated
MaterialSteel
ColourPure white; RAL 9010
Product seriesRapid 80®

Environmental Data

17,4628 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate17,4628 kg CO2e / 1 Piece
CO₂ Footprint (GWP)17,4628 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

IKR12RW70170
Item no.
6288328
Length
500
Colour
Pure white; RAL 9010
IKR12RW90170
Item no.
6288330
Length
500
Colour
Pure white; RAL 9010
IKR12RW70210
Item no.
6288334
Length
500
Colour
Pure white; RAL 9010
IKR12RW90210
Item no.
6288336
Length
500
Colour
Pure white; RAL 9010
