isFang support for spaced pipe mounting, ø 50−300 mm
Type isFang TR100 100
|Item no. 5408955
|EAN 4012195849360
Item no. / Type
Dimension L
Uyumluluk
Smallest selling unit: 2 piece
2piece
piece
Description

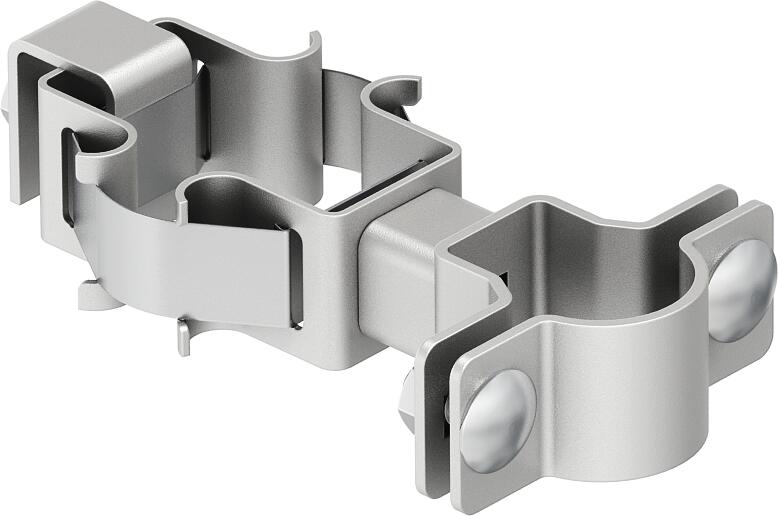

Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 50–300 mm.
Technical data

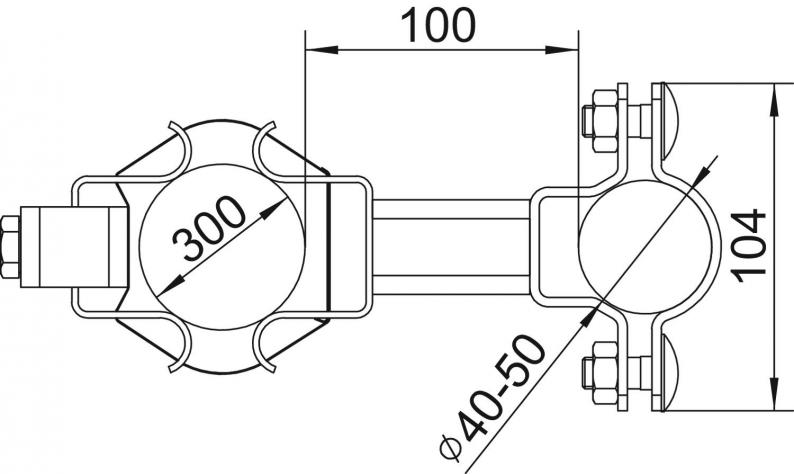

Dimensions
| Dimension L | 100 mm |
|---|---|
| Dimension d min. | 300 mm |
Technical data
| Uyumluluk | ø 50–300 mm |
|---|---|
| Boyut | Ø50-300mm |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Dimension L
Uyumluluk
Item no.
isFang TR100 100
100
ø 50–300
5408955
isFang TR100 200
200
ø 50–300
5408957
isFang TR100 300
300
ø 50–300
5408959
Dimension L
isFang TR100 100
Item no.
5408955
Dimension L
100
Uyumluluk
ø 50–300
isFang TR100 200
Item no.
5408957
Dimension L
200
Uyumluluk
ø 50–300
isFang TR100 300
Item no.
5408959
Dimension L
300
Uyumluluk
ø 50–300
