Joint connector A2
Type SSV A2
|Item no. 6066054
|EAN 4012196064816
Item no. / Type
6066054 / SSV A2
Plate thickness
2 mm
Smallest selling unit: 25 piece
25piece
piece
Description

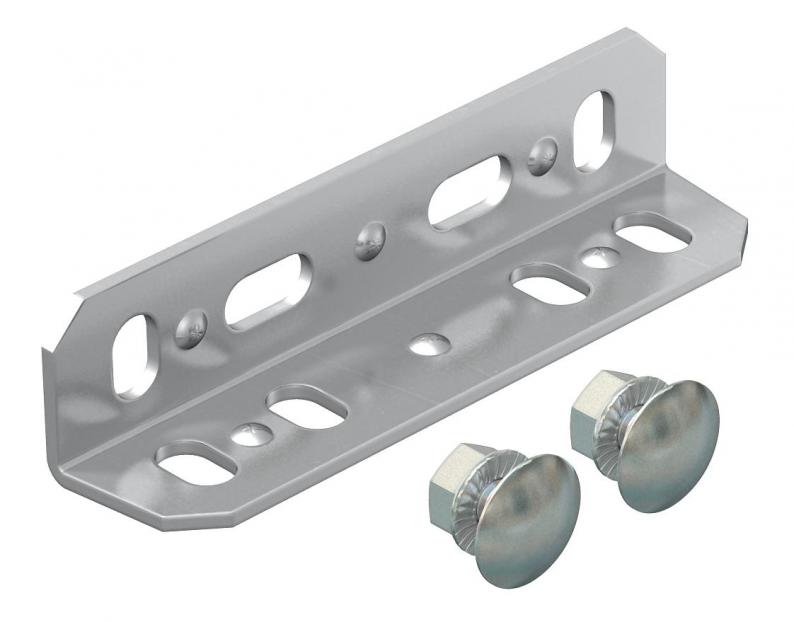

Joint connector for horizontal connection of BKK basic profiles. Including fastening material.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |

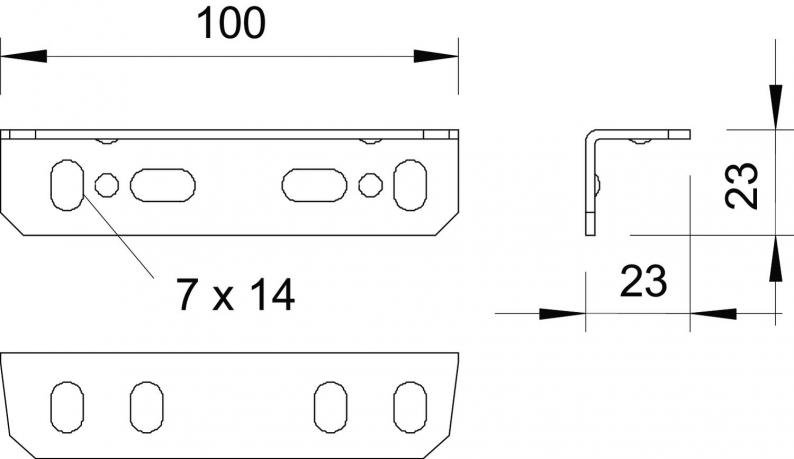

| Dimension | 23 x 23 x 100 |
| Version for | Joint plate |
| Connection type | Screw connector |
| Dimension | 100x23 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
0,651 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,651 kg CO2e / 1 Piece |
|---|
