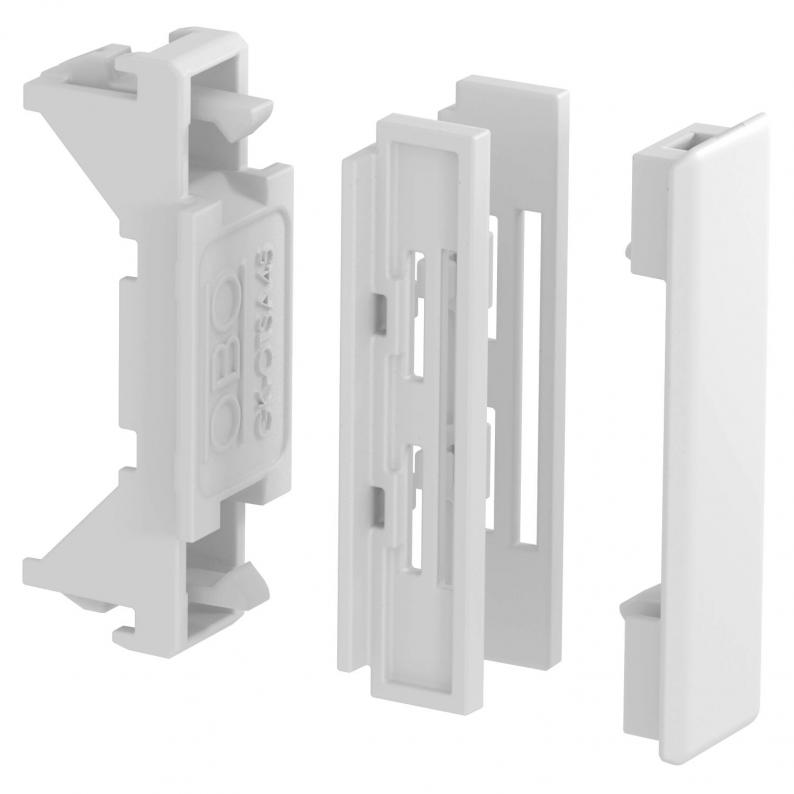

Joint cover
Type GK-OTSA45RW
|Item no. 6113030
|EAN 4012196419159
Item no. / Type
Colour
Smallest selling unit: 6 piece
6piece
piece
Description
Joint cover for the cover of the Rapid 45-2 device installation trunking to hide cut edges and provide a tidy connection to installed Modul 45® devices.
Technical data

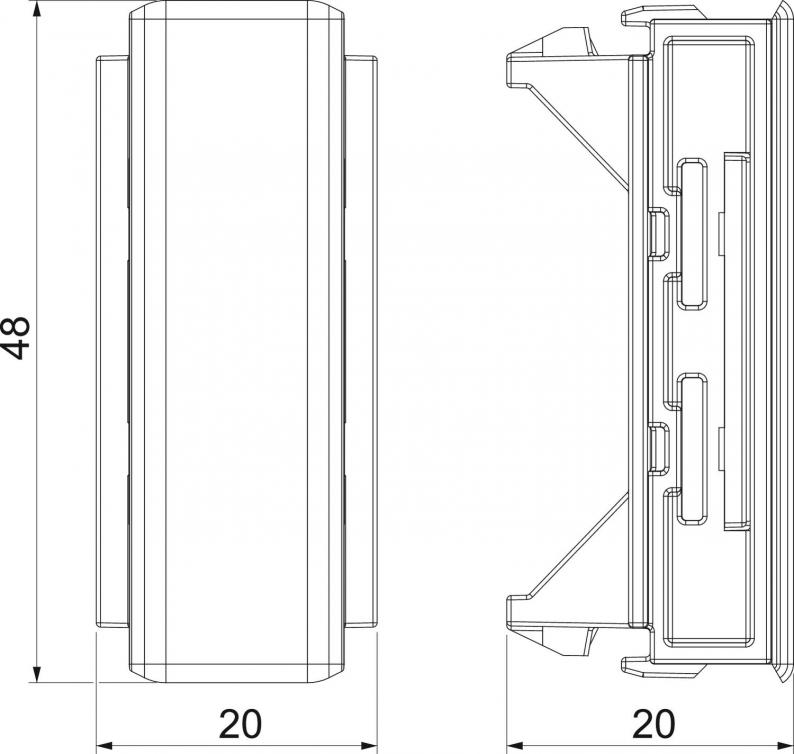

Dimensions
| Length | 20 mm |
|---|---|
| Width | 48 mm |
| Height | 20 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP40 |
| Protection rating IK code | IK08 |
| for trunking height | 53 mm |
| Shape | Symmetrical |
| Version for | Cover cut lamination |
| Fastening type | Lockable |
| Kanal genişliği | 45 mm |
| Kullanılabilir sıcaklık aralığı min. | -15 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 48x20x20 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0898 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Colour
Item no.
GK-OTSA45RW
Pure white; RAL 9010
6113030
GK-OTSA45LGR
Light grey; RAL 7035
6113032
GK-OTSA45AL
alüminyum
6113034
Colour
GK-OTSA45RW
Item no.
6113030
Colour
Pure white; RAL 9010
GK-OTSA45LGR
Item no.
6113032
Colour
Light grey; RAL 7035
GK-OTSA45AL
Item no.
6113034
Colour
alüminyum
