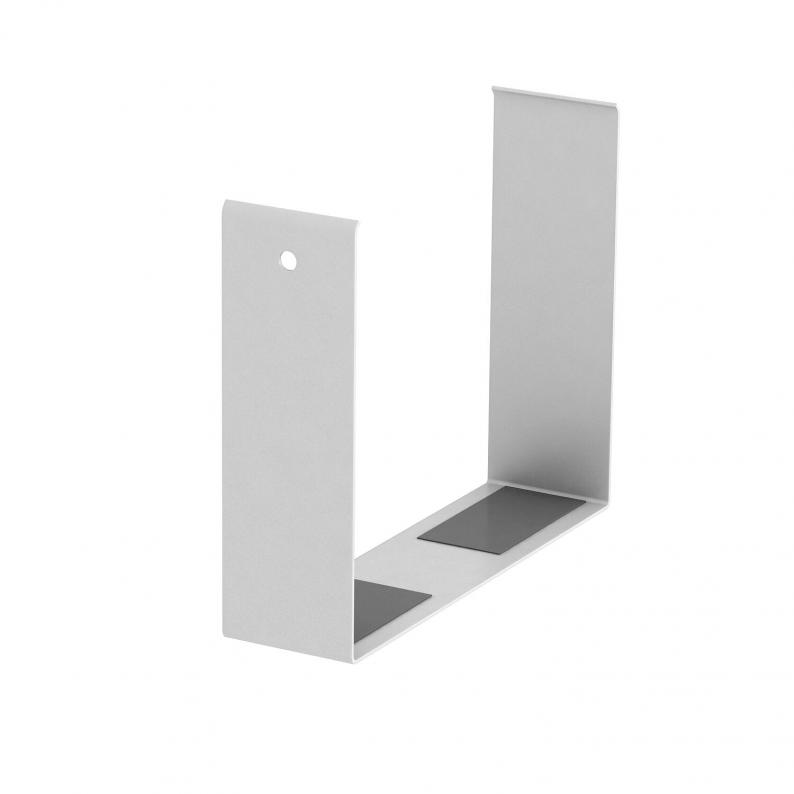

Joint cover, trunking height 90 mm

Joint cover, trunking height 90 mm

Type G-SVS90110RW
|
Item no. 6279776
|
EAN 4012195667827
Show all variants
Item no. / Type
6279776 / G-SVS90110RW
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Joint cover to hide sawn trunking joint edges.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

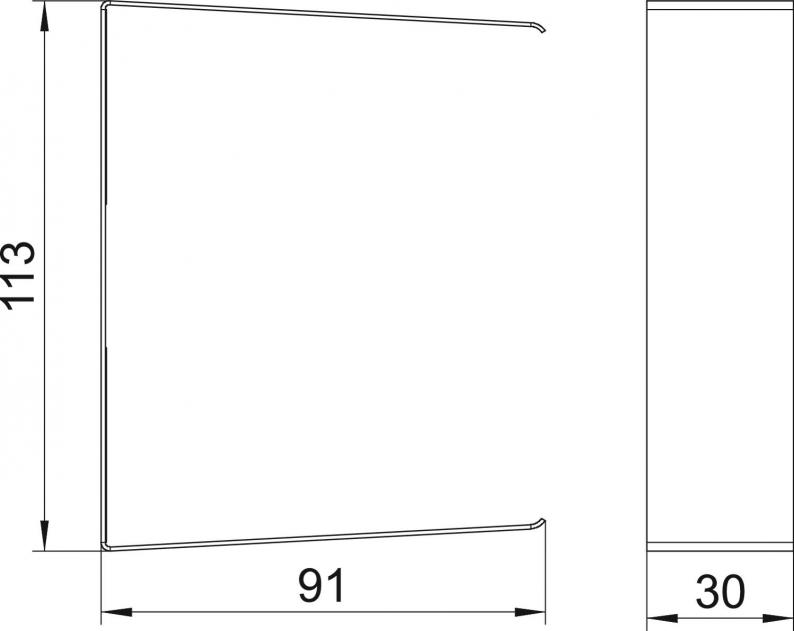

Dimensions

Length30 mm
Width113 mm
Height91 mm

Technical data

for duct dimension90x110
Halogen-freeyes
Protection ratingIP30
Protection rating IK codeIK10
for duct width110 mm
for trunking height90 mm
ShapeUniversal
Version forTrunking cut cover
Fastening typeSelf-adhesive
Cover width76,5 mm
Trunking depth90 mm
Duct height, min.90 mm
Permitted temperature range, min.-25 °C
Permitted temperature range, max.60 °C
Dimension90x110x30
MaterialSteel
ColourPure white; RAL 9010
Product seriesRapid 80®

Environmental Data

0,1954 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1954 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1954 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
