Joint plate FS

Joint plate FS

Type SSLB 300 FS
|
Item no. 7070217
|
EAN 4012196094943
Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B

Smallest selling unit: 20 piece

piece

Description

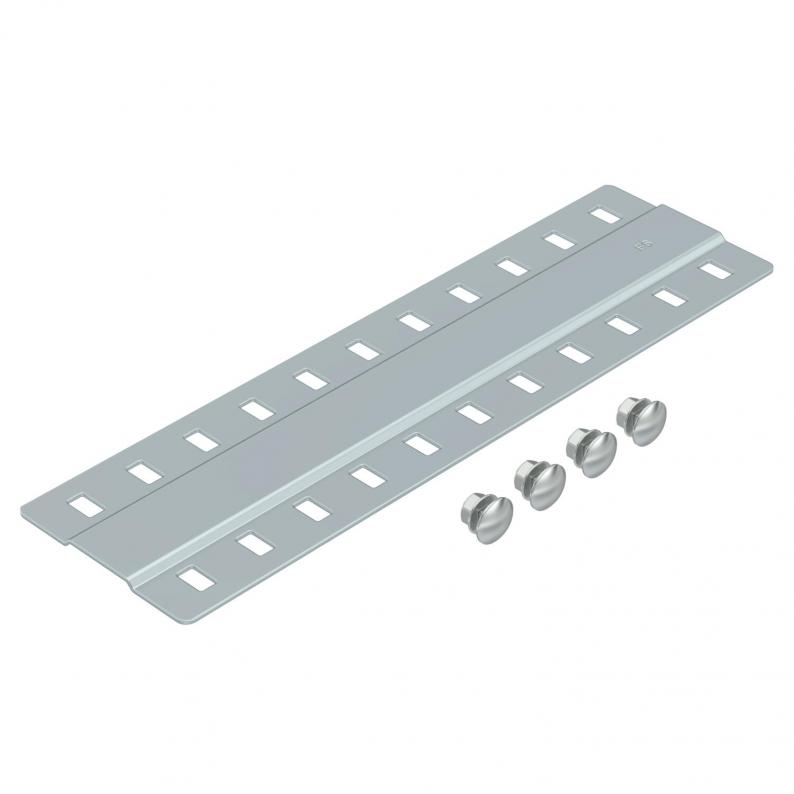

Wide joint plate for use in all cable trays and wide span cable trays. Including fastening material.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length300 mm
Width285 mm
Height4 mm
Dimension B300 mm

Technical data

Maintain electrical functionsyes
Wide-span versionyes
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Vida sayısı4 St.
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunno
Kablo kanalı için uygunyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Version forJoint plate
Connection typeScrew connector
BoyutB300mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,756 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
Dimension B
SSLB 100 FS
Item no.
7070205
Width
85
Height
4
Plate thickness
1,5
Dimension B
100
SSLB 150 FS
Item no.
7070209
Width
135
Height
4
Plate thickness
1,5
Dimension B
150
SSLB 200 FS
Item no.
7070213
Width
185
Height
4
Plate thickness
1,5
Dimension B
200
SSLB 300 FS
Item no.
7070217
Width
285
Height
4
Plate thickness
1,5
Dimension B
300
SSLB 400 FS
Item no.
7070221
Width
385
Height
4
Plate thickness
1,5
Dimension B
400
SSLB 500 FS
Item no.
7070225
Width
485
Height
4
Plate thickness
1,5
Dimension B
500
SSLB 550 FS
Item no.
7070229
Width
535
Height
4
Plate thickness
1,5
Dimension B
550
SSLB 600 FS
Item no.
7070233
Width
585
Height
4
Plate thickness
1,5
Dimension B
600
