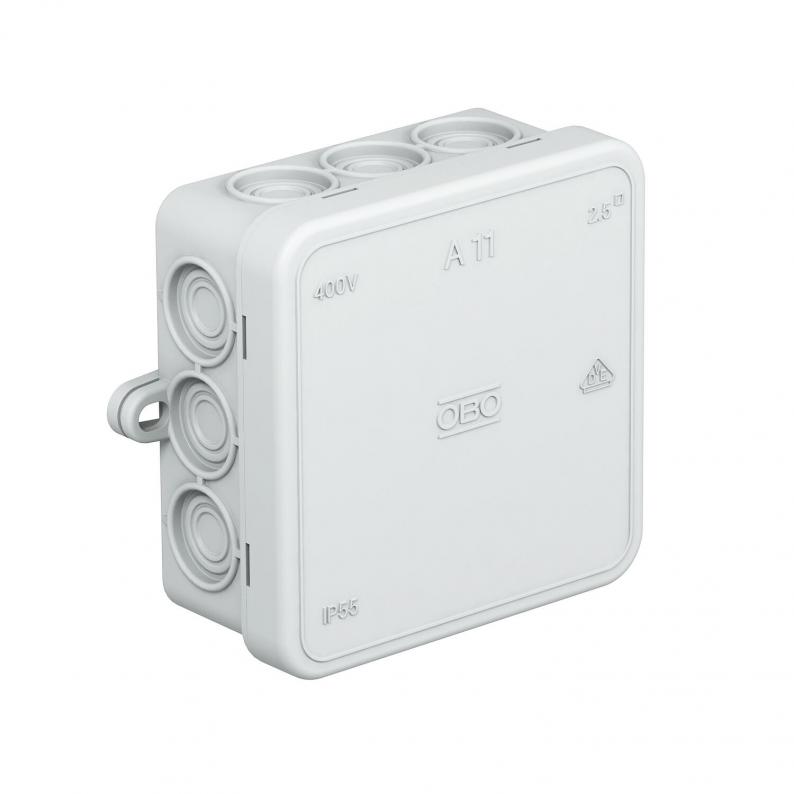

Junction box A 11

Junction box A 11

Type A 11
|
Item no. 2000342
|
EAN 4012195152170
Show all variants
Item no. / Type
Clear internal dimensions
Colour

Smallest selling unit: 10 piece

piece

Description

Protection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 12 entries for cable diameters of 5‒14 mm.

Clamshell.

Dimensions: 85 x 85 x 40 mm

Clear internal dimensions: 75 x 75 x 35 mm

1 cut-out tool for every 10 boxes
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Aleve dayanıklı 650°C
  • Halojen içermez; Klor, flüor ve brom içermez
  • IK Code 07
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Koruma sınıfı IP 55
  • Anma kesiti 2,5 mm²
  • 12 kablo girişi
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

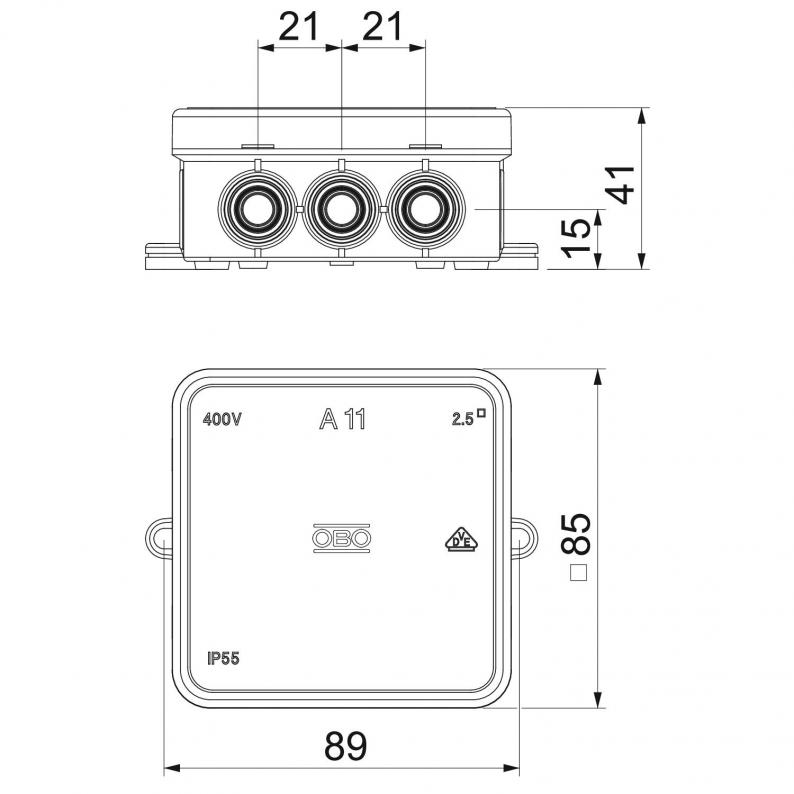

Dimensions

Length85 mm
Width85 mm
Height40 mm
Clear internal dimensions75x75x35 mm

Technical data

Giriş şekliKablo
Halojen İçermezevet
Giriş sayısı12
Arkadan girişhayır
Şeffaf kapakhayır
Koruma sınıfıIP55
Anma gerilimi690 V
Expandableevet
Kapaklıevet
Sealablehayır
Type of entryCable
For Ex zoneYok
Measured insulation voltage Vi690 V
Maintain electrical functionsYok
Explosion-tested versionhayır
Type of housing penetrationPre-marking
Ekranlamalıhayır
Weatherproofhayır
for pipe diameter14 mm
For Ex zone gasYok
For Ex zone dustYok
Max. Conductor cross-section2,5 mm²
Anma kesiti min.2,5 mm²
ShapeSquare
EquipmentYok
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.45 °C
Aleve dayanıklıacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Boyut85x85x40
MaterialPolyethylene
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,1196 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
A 11 HF RO
Item no.
2000164
Clear internal dimensions
75x75x35
Giriş sayısı
12
Koruma sınıfı
IP55
Colour
Red
A 11 HF RW
Item no.
2000180
Clear internal dimensions
75x75x35
Giriş sayısı
12
Koruma sınıfı
IP55
Colour
Pure white; RAL 9010
A 11
Item no.
2000342
Clear internal dimensions
75x75x35
Giriş sayısı
12
Koruma sınıfı
IP55
Colour
Light grey; RAL 7035
