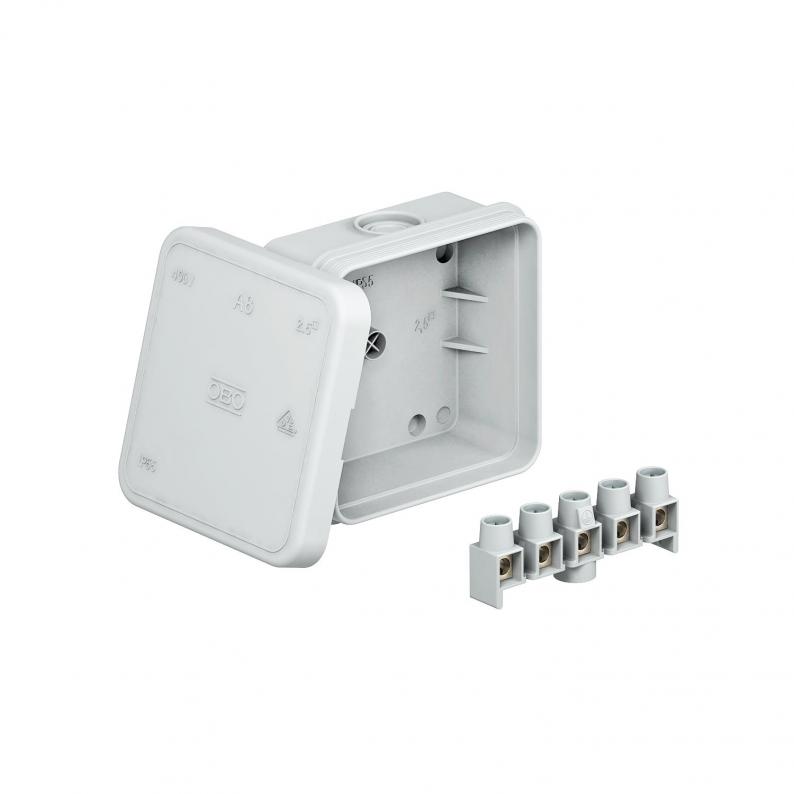

Junction box A 8 with terminal strip
Type A 8 5
|Item no. 2000024
|EAN 4012195151456
Item no. / Type
2000024 / A 8 5
Clear internal dimensions
65x65x32 mm
Giriş sayısı
7
Koruma sınıfı
IP55
Colour
Light grey; RAL 7035
Smallest selling unit: 10 piece
10piece
piece
Description
Protection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 7 entries for cable diameter 5‒14 mm.
Clamshell.

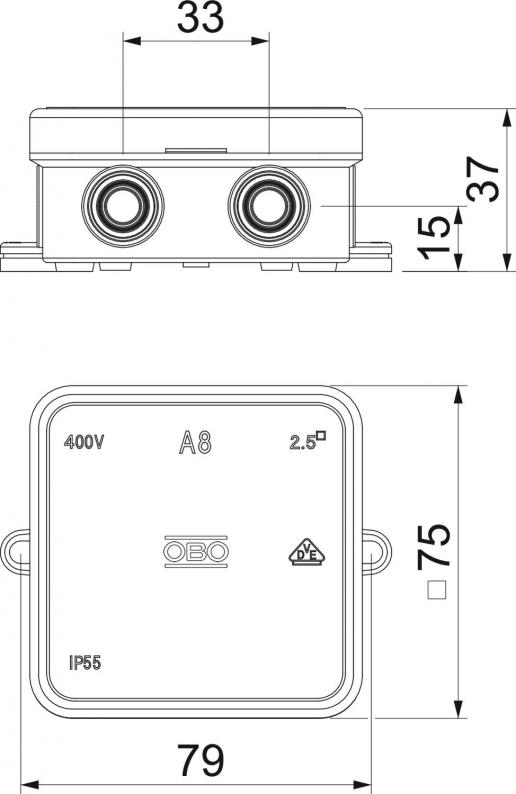

Dimensions: 75 x 75 x 36.2 mm
Clear internal dimensions: 65 x 65 x 32 mm
1 cut-out tool for every 10 boxes
Clamshell.
Dimensions: 75 x 75 x 36.2 mm
Clear internal dimensions: 65 x 65 x 32 mm
1 cut-out tool for every 10 boxes
Technical data
Dimensions
| Length | 75 mm |
|---|---|
| Width | 75 mm |
| Height | 36,7 mm |
| Clear internal dimensions | 65x65x32 mm |
Technical data
| Giriş şekli | Kablo |
|---|---|
| Halojen İçermez | evet |
| Giriş sayısı | 7 |
| Number of terminals | 5 |
| Arkadan giriş | hayır |
| Şeffaf kapak | hayır |
| Koruma sınıfı | IP55 |
| Anma gerilimi | 690 V |
| Expandable | evet |
| Kapaklı | evet |
| Sealable | hayır |
| Type of entry | Cable |
| For Ex zone | Yok |
| Measured insulation voltage Vi | 690 V |
| Maintain electrical functions | Yok |
| Explosion-tested version | hayır |
| Type of housing penetration | Pre-marking |
| Ekranlamalı | hayır |
| Weatherproof | hayır |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Max. Conductor cross-section | 2,5 mm² |
| Anma kesiti min. | 2,5 mm² |
| Shape | Square |
| Equipment | Klemens |
| Cover | Not transparent |
| Cover fastening | Locking |
| Mounting type | Wall/ceiling mounting |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 45 °C |
| Aleve dayanıklı | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Boyut | 75x75x36 |
| Material | Polyethylene |
| Colour | Light grey; RAL 7035 |
| Junction box cover version | Blanking lid |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,177 kg CO2e / 1 Adet |
|---|
