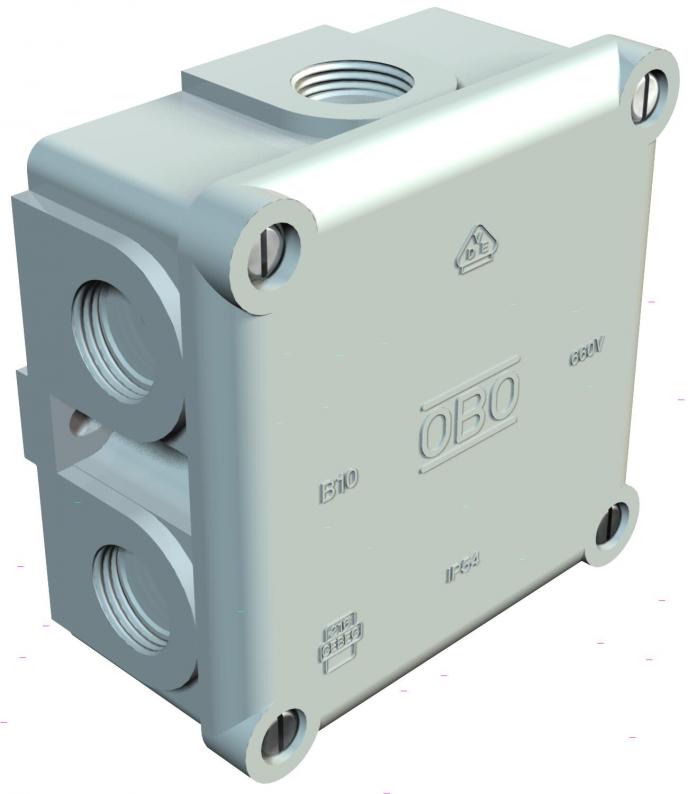

Junction box, B 10 M, with thread

Junction box, B 10 M, with thread

Type B 10 M 5
|
Item no. 2002140
|
EAN 4012195107712
Show all variants
Item no. / Type
Clear internal dimensions
No. of entries

Smallest selling unit: 5 piece

piece

Description

Protection rating IP54, rated voltage 660 V, nominal cross-section 2.5 ÷ 4, in combination with the earthing terminal 700/6 M, the box has the nominal cross-section 4 mm², two fastening holes for screws of up to 5 mm Ø on the outer side of the box. Four cover screws, 7 break-out entries with thread M20 x 1.5, primarily for cable glands with short connecting thread.
Clear internal dimensions: 80x80x39 mm.
B 10/4 M VDE: with five-pole earthing terminal 700/4 BM made of melamine for max. four 2.5 mm² cables per terminal
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Indication of metric products
  • CEBEC, Belgium
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • M20 entry
  • Nominal cross-section 4 mm²
  • 7 cable entries
  • Nominal voltage 660 V
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

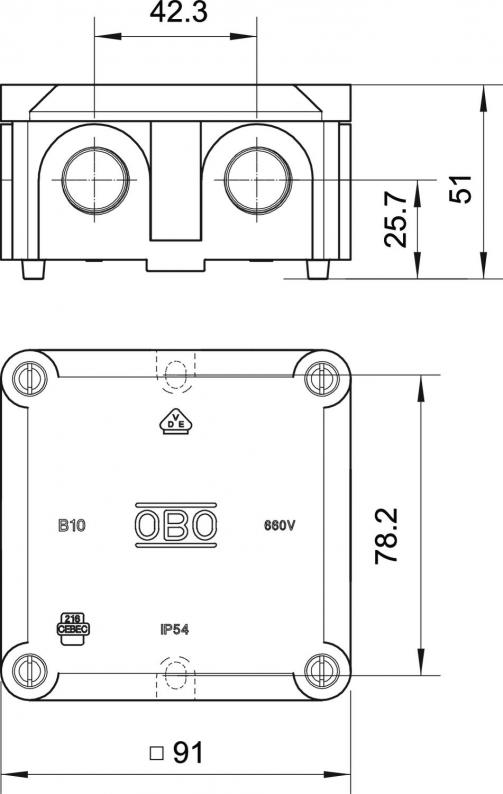

Dimensions

Length91 mm
Width91 mm
Height51 mm
Clear internal dimensions80x80x39 mm

Technical data

Type of entryGland
Impact-resistantno
Halogen-freeyes
No. of entries7
Number of terminals5
Entry from rearno
Transparent lidno
Protection ratingIP54
Nominal voltage660 V
Expandableno
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi660 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationThread and pre-marking
With screeningno
Weatherproofno
for pipe diameter20 mm
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.2,5 mm²
Nominal cross-section, max.4 mm²
ShapeSquare
EquipmentTerminal
CoverNot transparent
Cover fasteningScrewed
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Dimension91x91x51
MaterialDuroplast, Aminoplast Typ 131.5
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

Environmental Data

0,5052 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5052 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

Clear internal dimensions
No. of entries
B 10 M 5
Item no.
2002140
Clear internal dimensions
80x80x39
No. of entries
7
Protection rating
IP54
Colour
Light grey; RAL 7035
B 11 M 5
Item no.
2002329
Clear internal dimensions
125x100x44
No. of entries
10
Protection rating
IP54
Colour
Light grey; RAL 7035
