Junction box B 9 T, perforation membrane, with cable gland, PG

Junction box B 9 T, perforation membrane, with cable gland, PG

Type B 9 T NL
|
Item no. 2001829
|
EAN 4012195335412
Show all variants
Item no. / Type
2001829 / B 9 T NL
Clear internal dimensions
98x98x40 mm
No. of entries
9
Protection rating
IP67
Colour
Light grey; RAL 7035

Smallest selling unit: 5 piece

piece

Description

B9/T...: Comprises 2 halogen-free plastics components, 8 threaded entries (PG16) with push-through membrane (for cable diameter up to 15 mm)

including one in base. Where cable glands are used (giving additional strain

relief) there is no need to remove the membrane (this saves time).

Protection  IP67. Rated voltage 400 V; Nominal cross section 4 ÷ 6 mm². The lid is secured with 4 pre-fitted rapid fixings (180°). The fixing holes are additionally moulded with a soft plastics component for screw ø 5 mm (spacing 75 mm).

Clear internal dimensions: 98x98x40
  • KEMA-KEUR, Netherlands
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • CEBEC, Belgium
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • Nominal cross-section 4–6 mm²
  • 9 cable entries
  • Nominal voltage 400 V
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

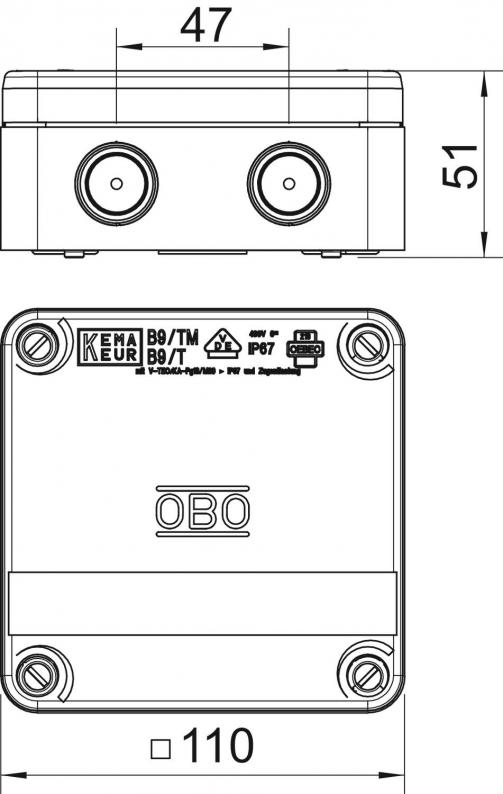

Dimensions

Length110 mm
Width110 mm
Height51 mm
Clear internal dimensions98x98x40 mm

Technical data

Type of entryCable/gland
Halogen-freeyes
No. of entries9
Entry from rearyes
Protection ratingIP67
Nominal voltage400 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi400 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationThread and sealing membrane
Weatherproofno
For Ex zone gasWithout
For Ex zone dustWithout
Max. Conductor cross-section6 mm²
Nominal cross-section, min.4 mm²
Nominal cross-section, max.6 mm²
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension110x110x50
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,7247 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,7247 kg CO2e / 1 Piece
