Junction box T 160, plug-in seal, flame-resistant
Type T 160 F
|Item no. 2007355
|EAN 4012195286554
Item no. / Type
2007355 / T 160 F
Clear internal dimensions
176x135x67 mm
Giriş sayısı
12
Koruma sınıfı
IP66
Colour
Light grey; RAL 7035
Smallest selling unit: 1 piece
1piece
piece
Description

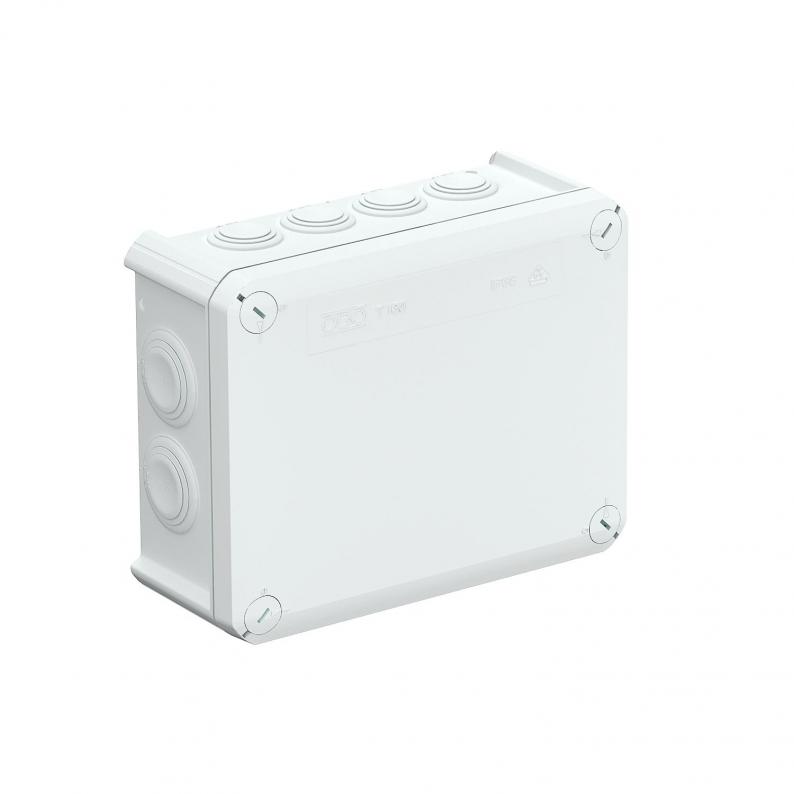

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Flame-resistant type made from special polypropylene.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695-2-11, test temperature 960 °C. Impact resistance IK05 according to DIN EN 50102.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695-2-11, test temperature 960 °C. Impact resistance IK05 according to DIN EN 50102.
Technical data

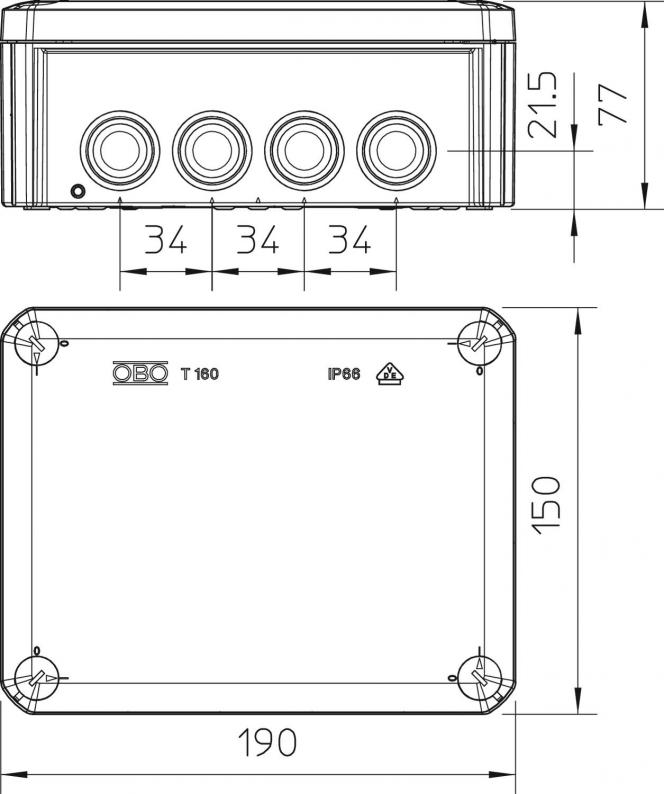

Dimensions
| Length | 190 mm |
|---|---|
| Width | 150 mm |
| Height | 77 mm |
| Clear internal dimensions | 176x135x67 mm |
Technical data
| Giriş şekli | Plug-in seal |
|---|---|
| Cam elyafı takviyeli | evet |
| Giriş sayısı | 12 |
| Arkadan giriş | evet |
| Şeffaf kapak | hayır |
| Koruma sınıfı | IP66 |
| Anma gerilimi | 500 V |
| Expandable | evet |
| Kapaklı | evet |
| Sealable | evet |
| Type of entry | Cable |
| For Ex zone | Yok |
| Measured insulation voltage Vi | 500 V |
| Maintain electrical functions | Yok |
| Explosion-tested version | hayır |
| Type of housing penetration | Cuttable stepped membrane |
| Ekranlamalı | hayır |
| Weatherproof | hayır |
| Protection rating IK code | IK05 |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Anma kesiti min. | 16 mm² |
| Shape | Rectangular |
| Equipment | Yok |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Mounting type | Wall/ceiling mounting |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Aleve dayanıklı | VDE 0471/DIN 695 Kısım 2-1'e uygun aleve dayanıklılık, Test sıcaklığı 960°C |
| Boyut | 190x150x77 |
| Material | Polypropylene, fibreglass reinforced |
| Colour | Light grey; RAL 7035 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,385 kg CO2e / 1 Adet |
|---|
