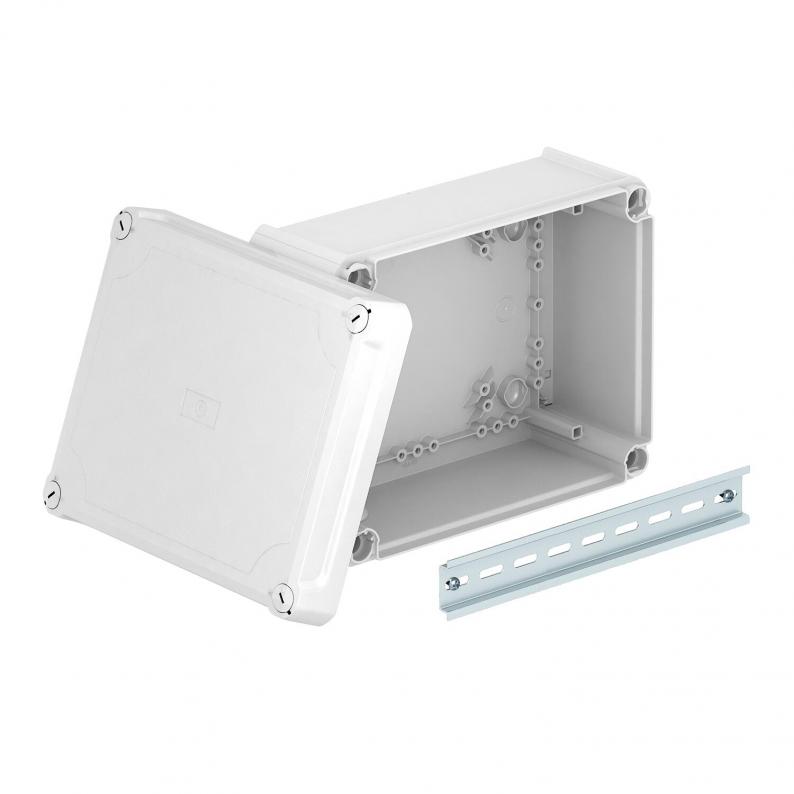

Junction box T250, closed, elevated cover

Junction box T250, closed, elevated cover

Type T 250 OE HD LGR
|
Item no. 2007736
|
EAN 4012195985921
Show all variants
Item no. / Type
2007736 / T 250 OE HD LGR
Clear internal dimensions
225x173x102 mm
Protection rating
IP66
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

piece

Description

Closed junction box for the connection of cables in indoor and protected outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option of fastening inside and to mount via the corner domes. High cover with quick lock, sealable. Made from halogen-free, UV-resistant materials.

With hat profile rail.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650°C. Impact resistance IK05 according to DIN EN 50102.
Clear internal dimensions: 225x173x102 mm
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Nominal voltage 500 V
  • Protection rating IP 66
  • IK Code 05
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length240 mm
Width190 mm
Height112 mm
Clear internal dimensions225x173x102 mm

Technical data

Type of entryNone
Halogen-freeyes
Fibre-glass reinforcedyes
Entry from rearyes
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationWithout
With screeningno
Weatherproofno
Protection rating IK codeIK05.
For Ex zone gasWithout
For Ex zone dustWithout
ShapeRectangular
EquipmentSupport rail
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-25 °C
Permitted temperature range, max.65 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension240x190x115
MaterialPolypropylene / polycarbonate
ColourLight grey; RAL 7035

Environmental Data

2,367 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate2,367 kg CO2e / 1 Piece
