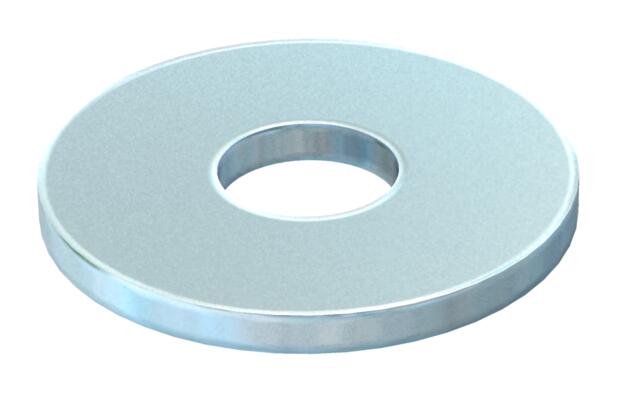

Large washer G

Large washer G

Type WS M4 G15 G
|
Item no. 3403025
|
EAN 4012195867913
Show all variants
Item no. / Type
Dimension d
Thread
Dimension d min.
Dimension h

Smallest selling unit: 100 piece

piece

Description

Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Material thickness1,2 mm
ThreadM4
Hardenedno
Inner diameter4,3 mm
External diameter15 mm
Facetedno
DimensionM4,Ø15mm
SurfaceElectrogalvanised
MaterialSteel

Dimensions

Dimension d4,3 mm
Dimension d max.15 mm
Dimension d min.15 mm
Dimension h1,2 mm

Environmental Data

0,0035 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0035 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Dimension d
Thread
Dimension d min.
Dimension h
WS M4 G15 G
Item no.
3403025
Dimension d
4,3
Thread
M4
Dimension d min.
15
Dimension h
1,2
WS M5 G20 G
Item no.
3403041
Dimension d
5,3
Thread
M5
Dimension d min.
20
Dimension h
1,2
WS M6 G20 G
Item no.
3403076
Dimension d
6,4
Thread
M6
Dimension d min.
20
Dimension h
1,25
WS M6 G25 G
Item no.
3403084
Dimension d
6,4
Thread
M6
Dimension d min.
25
Dimension h
1,2
WS M6 G30 G
Item no.
3403092
Dimension d
6,4
Thread
M6
Dimension d min.
30
Dimension h
1,3
WS M8 G20 G
Item no.
3403122
Dimension d
8,4
Thread
M8
Dimension d min.
20
Dimension h
1,25
WS M8 G25 G
Item no.
3403130
Dimension d
8,4
Thread
M8
Dimension d min.
25
Dimension h
1,2
WS M10 G30 G
Item no.
3403165
Dimension d
10,5
Thread
M10
Dimension d min.
30
Dimension h
1,5
