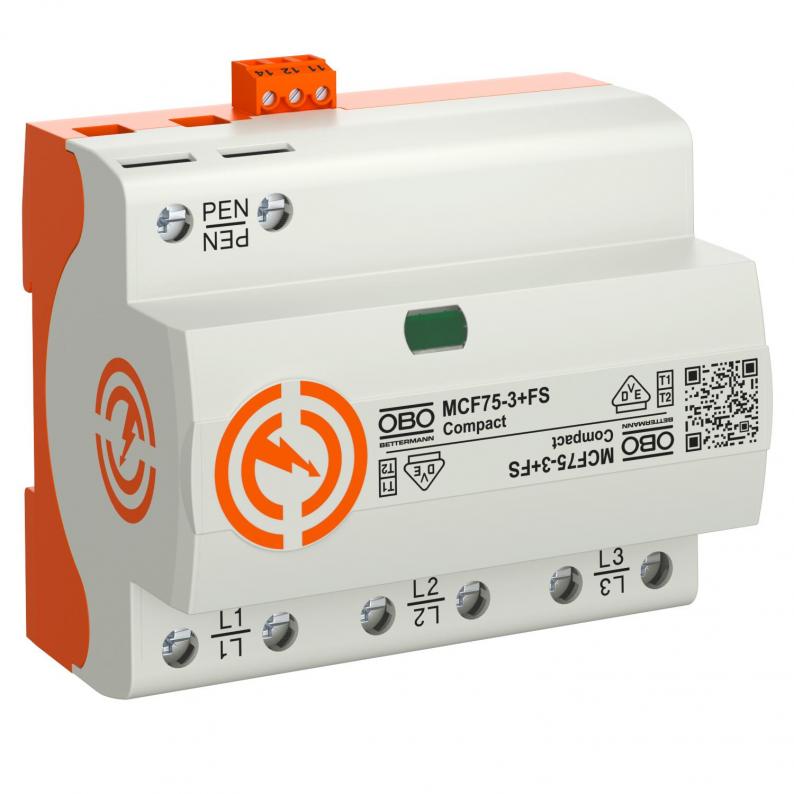

LightningController Compact - MCF75
Type MCF75-3+FS
|Item no. 5096981
|EAN 4012196487325
Item no. / Type
5096981 / MCF75-3+FS
Koruma sınıfı
IP20
Remote signalling
yes
Lightning surge current (10/350 μs)
25 kA
Maximum continuous voltage AC
255 V
Pole version
3
Smallest selling unit: 1 piece
1piece
piece
Description
Combination arrester, lightning current and surge arrester, type 1+2
• Protection level ≤ 1.5 kV
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 75 kA (10/350), 3-pole
• Line following current quenching 50 kA Ipeak, arrester backup fuse to 315 A gL/gG
• Fulfils the requirements of VDE-AR-N 4100 for use in pre-meter area
• Encapsulated, non-extinguishing spark gap arrester for use in distributor housings
Application: Industrial systems and buildings with external lightning protection of the highest class I to IV.
Compact protection device
• Protection level ≤ 1.5 kV
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 75 kA (10/350), 3-pole
• Line following current quenching 50 kA Ipeak, arrester backup fuse to 315 A gL/gG
• Fulfils the requirements of VDE-AR-N 4100 for use in pre-meter area
• Encapsulated, non-extinguishing spark gap arrester for use in distributor housings
Application: Industrial systems and buildings with external lightning protection of the highest class I to IV.
Compact protection device
Technical data

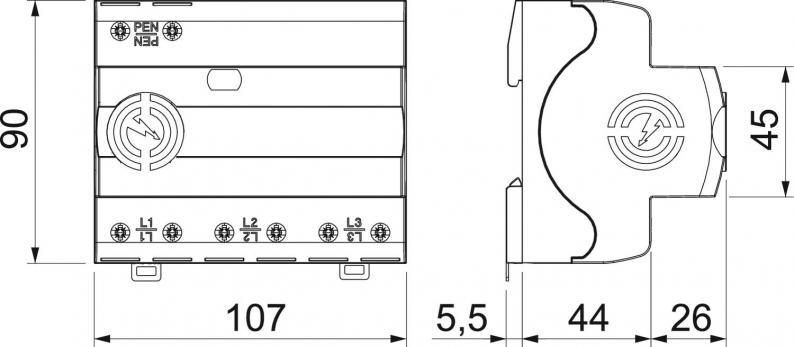

Dimensions
| Length | 90 mm |
|---|---|
| Width | 107 mm |
| Height | 70 mm |
Technical data
| Kutup sayısı | 3 |
|---|---|
| Ağ formu | TN-C |
| Cihazda sinyalizasyon | Visual |
| Koruma sınıfı | IP20 |
| Lightning surge current (10/350) | 75 kA |
| Housing material surge protection components | PA UL 94 V-0 |
| Remote signalling | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Lightning surge current (10/350 μs) | 25 kA |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 35 kA |
| Pole version | 3 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 315 A |
| Switching power AC | 250V/ 1,5A |
| Switching power DC | 250V/ 0,1A |
| Short-circuit resistance for max. mains-side overcurrent protection | 50 kA eff |
| TOV voltage [L-N] ‒ withstand mode ‒ 5 s | 440 V |
| TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. | 442 V |
| SPD to UL 1449 | Type 4 |
| Minimum distance | 0 mm |
| Approvals | VDE, UL |
| TN network form | yes |
| TN-C network form | yes |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Torque | 5 Nm |
| SPD to IEC 61643-1 | Class I+II |
| EN 61643-11 standardına göre talep sınıfı | Type 1+2 |
| Maximum discharge current (8/20 μs) | 50 kA |
| Devreye girme süresi | <100 ns |
| Maximum back-up fuse | 315 A |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 255V |
| Humidity, max. | 95 % |
| Humidity, min. | 5 % |
Connectivity options
| Conductor cross-section, flexible (fine-wire), min. | 1,5 mm² |
|---|---|
| Conductor cross-section, flexible (fine-wire), max. | 25 mm² |
| FM contacts | Changeover |
| Connection cross-section, FM terminals, min. | 0,5 mm² |
| Connection cross-section, FM terminals, max. | 1,5 mm² |
| Connection cross-section, FM terminals, min. | 28 AWG |
| Connection cross-section, FM terminals, max. | 16 AWG |
| Arrester surge current (8/20 µs) [total] | 75 kA |
| Conductor cross-section, flexible (fine-wire), min. | 16 AWG |
| Conductor cross-section, flexible (fine-wire), max. | 3 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 1,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 35 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 16 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 2 AWG |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 3,7009 kg CO2e / 1 Piece |
|---|
