LKM cable bracket, trunking width 60 mm

LKM cable bracket, trunking width 60 mm

Type LKM Z60
|
Item no. 6249906
|
EAN 4012196315376
Show all variants
Item no. / Type
Dimension b
Dimension a

Smallest selling unit: 10 piece

piece

Description

Cable bracket to fix cables in vertical routing.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length30 mm
Width46 mm
Height1,4 mm

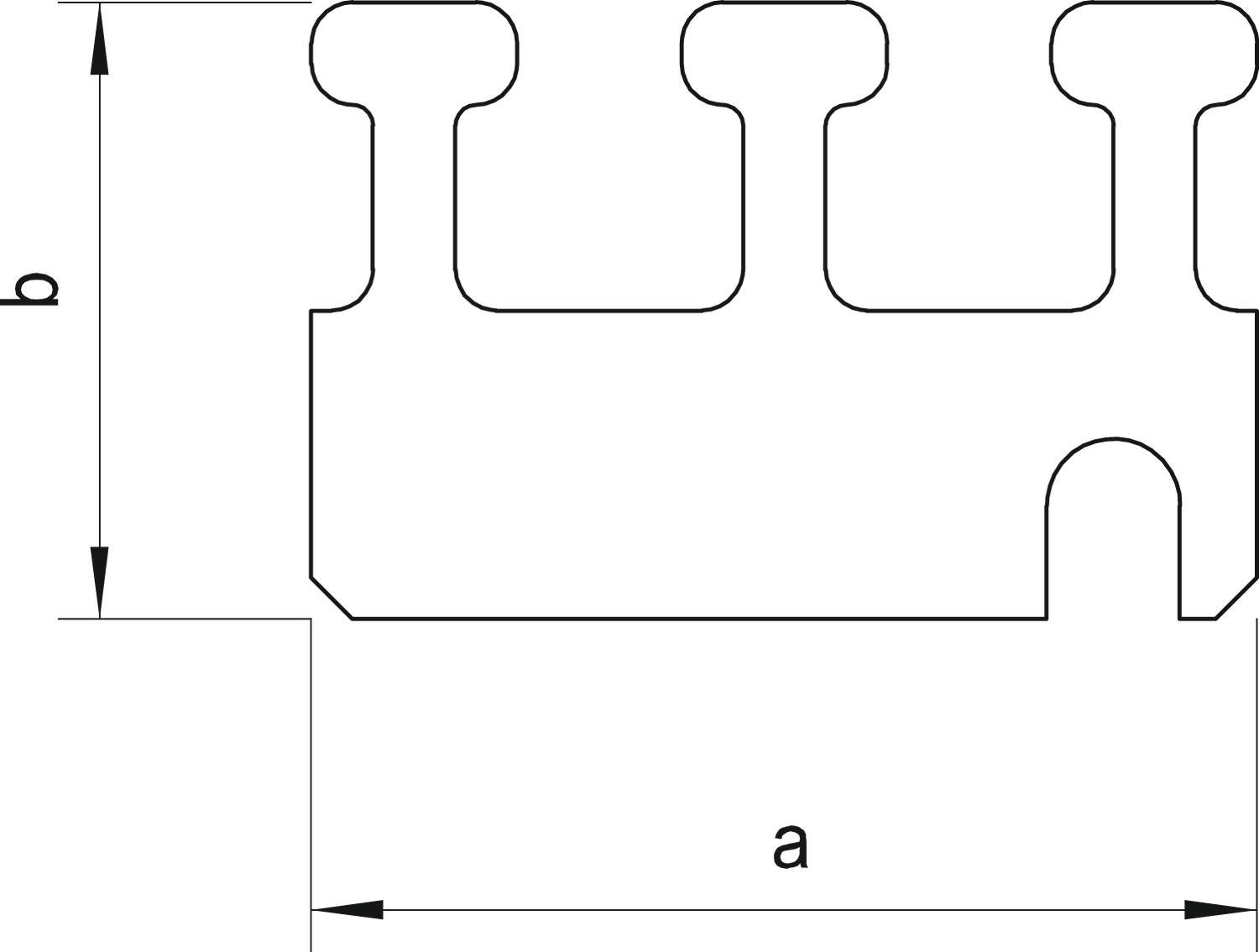

Dimension b30 mm
Dimension a46 mm

Technical data

Maintain electrical functionsno
for duct dimension60 x 60 mm
Halogen-freeyes
Self-extinguishingno
Protection ratingIP30
With equipotential bondingno
Protection rating IK codeIK10
Fastening typeScrew-on
Cover width60 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension60mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,0507 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,0507 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Dimension a
LKM Z60
Item no.
6249906
Dimension b
30
Dimension a
46
LKM Z100
Item no.
6249922
Dimension b
30
Dimension a
96
LKM Z150
Item no.
6249965
Dimension b
30
Dimension a
146
LKM Z200
Item no.
6249981
Dimension b
30
Dimension a
166
