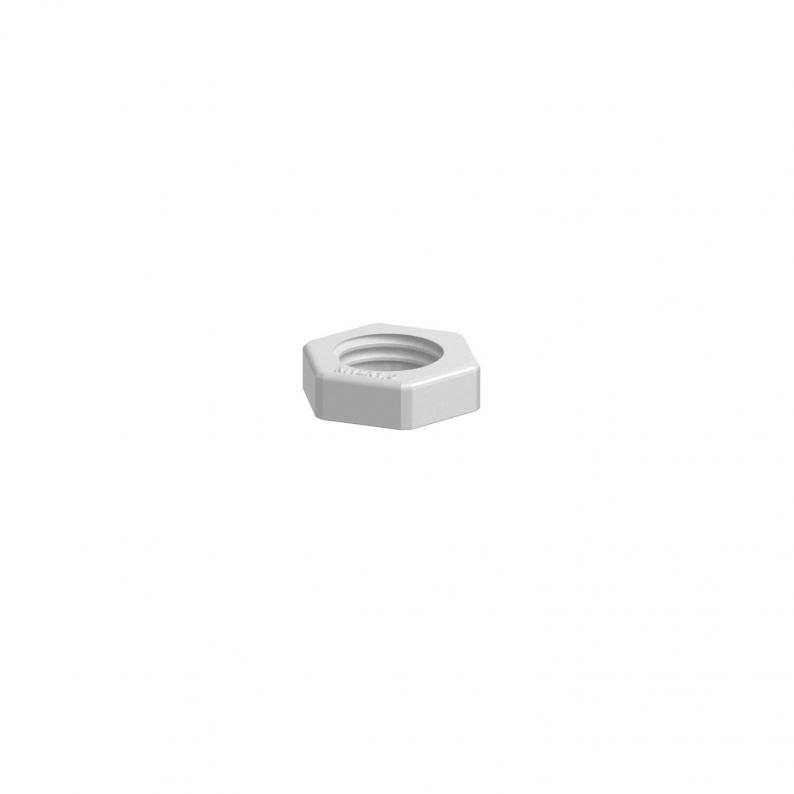

Locknut, metric thread, light grey
Type 116 M12 LGR PA
|Item no. 2048906
|EAN 4012195874157
Item no. / Type
Vida dişi
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
DIN 46319'a uygun kontra somun, IEC 423'e uygun metrik vida dişi ile.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Vida dişi | M12 x 1,5 |
| Thread type | Metric |
| WAF | 17 |
| Nominal thread size metric/PG | 12 |
| Boyut | M12 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |

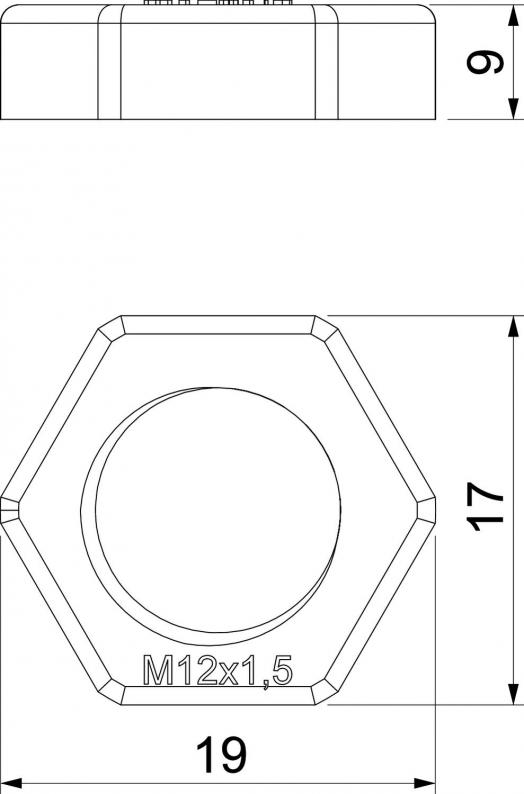

Dimensions
| Dimension L | 5 mm |
|---|---|
| Dimension E | 19 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0069 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Vida dişi
WAF
Item no.
116 M12 LGR PA
M12 x 1,5
17
2048906
116 M16 LGR PA
M16 x 1,5
22
2048914
116 M20 LGR PA
M20 x 1,5
26
2048922
116 M25 LGR PA
M25 x 1,5
32
2048930
116 M32 LGR PA
M32 x 1,5
41
2048949
116 M40 LGR PA
M40 x 1,5
50
2048957
116 M50 LGR PA
M50 x 1,5
60
2048965
116 M63 LGR PA
M63 x 1,5
75
2048973
