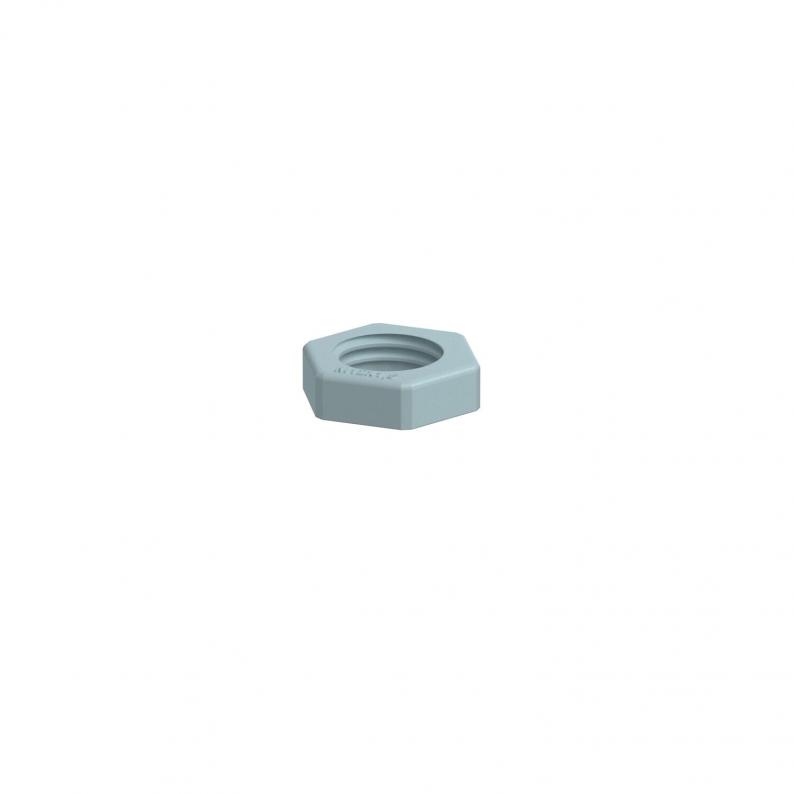

Locknut, metric thread, silver grey
Type 116 M12 SGR PA
|Item no. 2048752
|EAN 4012195446477
Item no. / Type
Vida dişi
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
DIN 46319'a uygun kontra somun, IEC 423'e uygun metrik vida dişi ile.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Vida dişi | M12 x 1,5 |
| Thread type | Metric |
| WAF | 17 |
| Nominal thread size metric/PG | 12 |
| Boyut | M12 |
| Material | Polyamide |
| Colour | Silver grey; RAL 7001 |

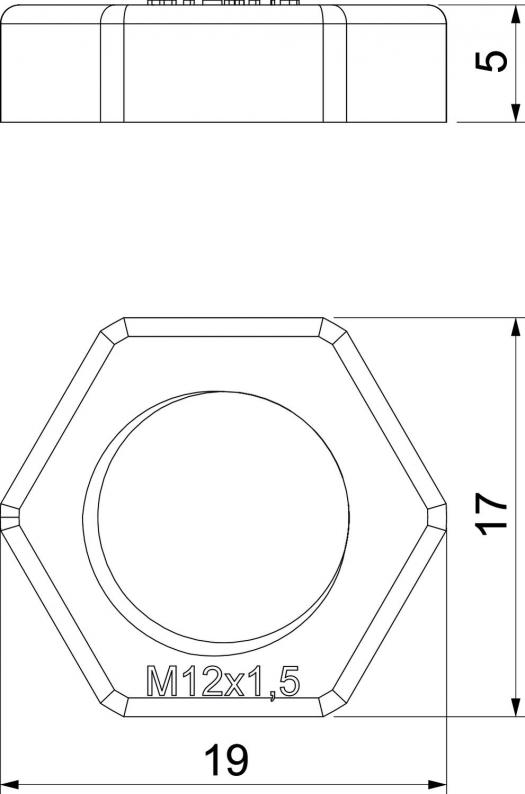

Dimensions
| Dimension L | 5 mm |
|---|---|
| Dimension E | 19 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0053 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Vida dişi
WAF
Item no.
116 M12 SGR PA
M12 x 1,5
17
2048752
116 M16 SGR PA
M16 x 1,5
22
2048760
116 M20 SGR PA
M20 x 1,5
26
2048779
116 M25 SGR PA
M25 x 1,5
32
2048787
116 M32 SGR PA
M32 x 1,5
41
2048795
116 M40 SGR PA
M40 x 1,5
50
2048809
116 M50 SGR PA
M50 x 1,5
60
2048817
116 M63 SGR PA
M63 x 1,5
75
2048825
