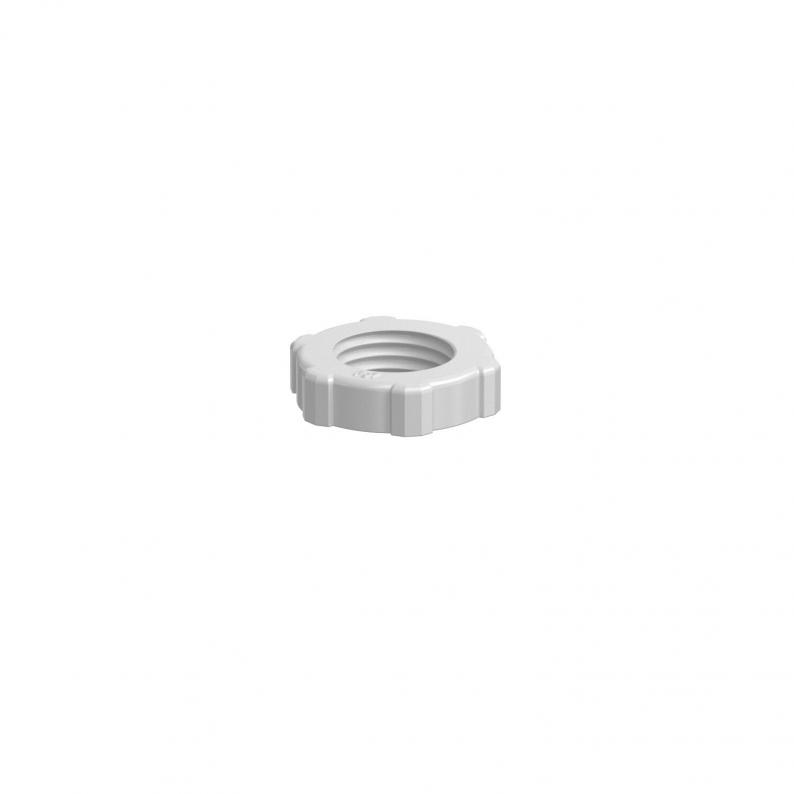

Locknut, PG thread, light grey
Type 116 VDE PG7 PA
|Item no. 2048078
|EAN 4012195182412
Item no. / Type
Vida dişi
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
DIN 46320'ye uygun kontra somun, DIN 40430'a uygun Pg vida dişli.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Vida dişi | Pg 7 |
| Thread type | PG |
| WAF | 19 |
| Nominal thread size metric/PG | 7 |
| Boyut | PG7 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |

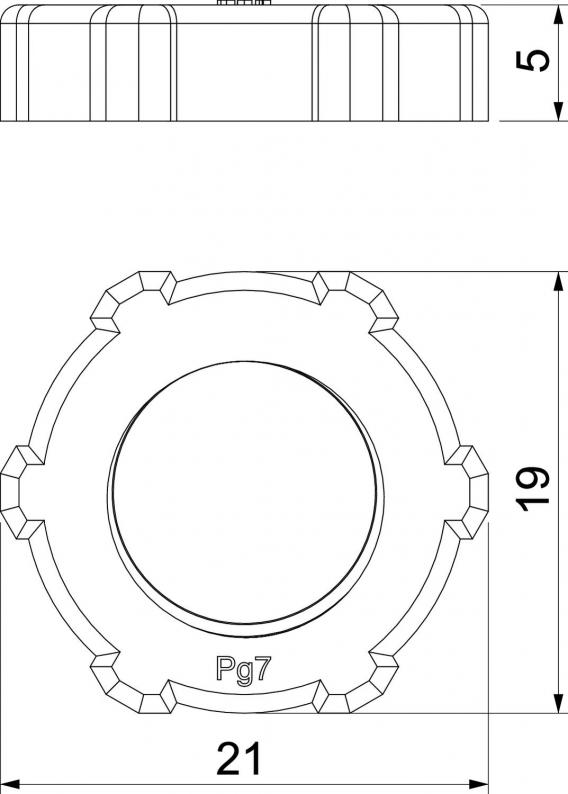

Dimensions
| Dimension L | 5 mm |
|---|---|
| Dimension E | 21 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,008 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Vida dişi
WAF
Item no.
116 VDE PG7 PA
Pg 7
19
2048078
116 VDE PG 9 PA
Pg 9
22
2048094
116 VDE PG11 PA
Pg 11
24
2048116
116 VDE PG13.5PA
Pg 13,5
27
2048132
116 VDE PG16 PA
Pg 16
30
2048167
116 VDE PG21 PA
Pg 21
36
2048221
116 VDE PG29 PA
Pg 29
46
2048299
116 VDE PG36 PA
Pg 36
60
2048361
116 VDE PG42 PA
Pg 42
65
2048426
116 VDE PG48 PA
Pg 48
70
2048485
