LSA-Plus technology / LSA connection strip
Type LSA-A-LEI
|Item no. 5084008
|EAN 4012195525134
Item no. / Type
5084008 / LSA-A-LEI
Smallest selling unit: 1 piece
1piece
piece
Description

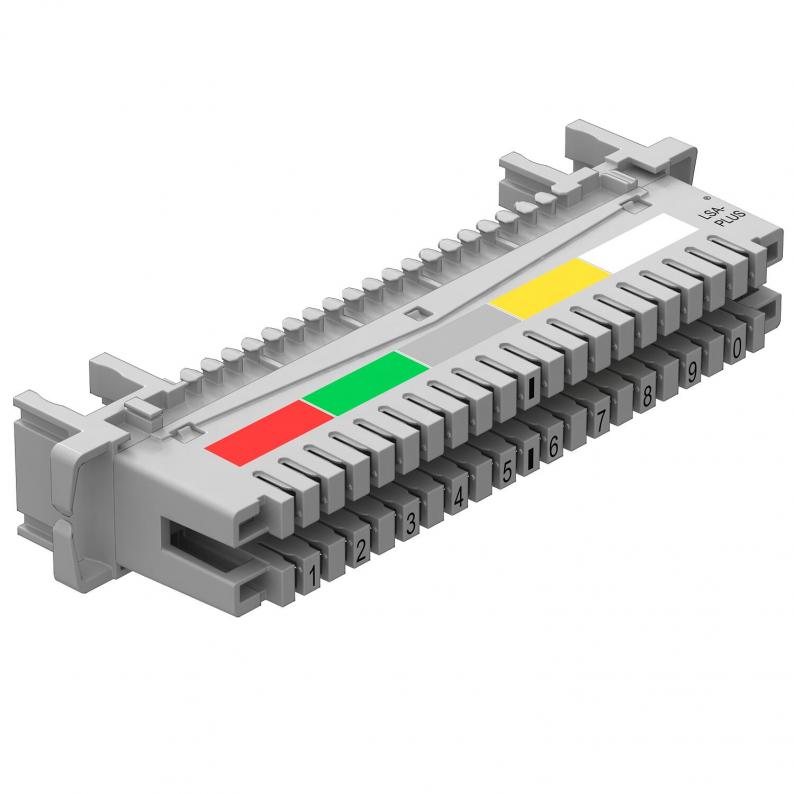

LSA connection strip 2/10 for attaching 10 double-cores.
• For use with protection element LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: Grey
• Clampable cross-sections 0.14–0.5 (AWG 26-20)
LSA-Plus connection strip for permanent, non-interruptible connections
• For use with protection element LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: Grey
• Clampable cross-sections 0.14–0.5 (AWG 26-20)
LSA-Plus connection strip for permanent, non-interruptible connections
Technical data
Technical data
| Kutup sayısı | 20 |
|---|---|
| Boyut | 40-polig |
| Colour | Grey |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0893 kg CO2e / 1 Piece |
|---|
