Magic bend, variable 110 FT
Type RBMV 110 FT
|Item no. 6040700
|EAN 4012195992813
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

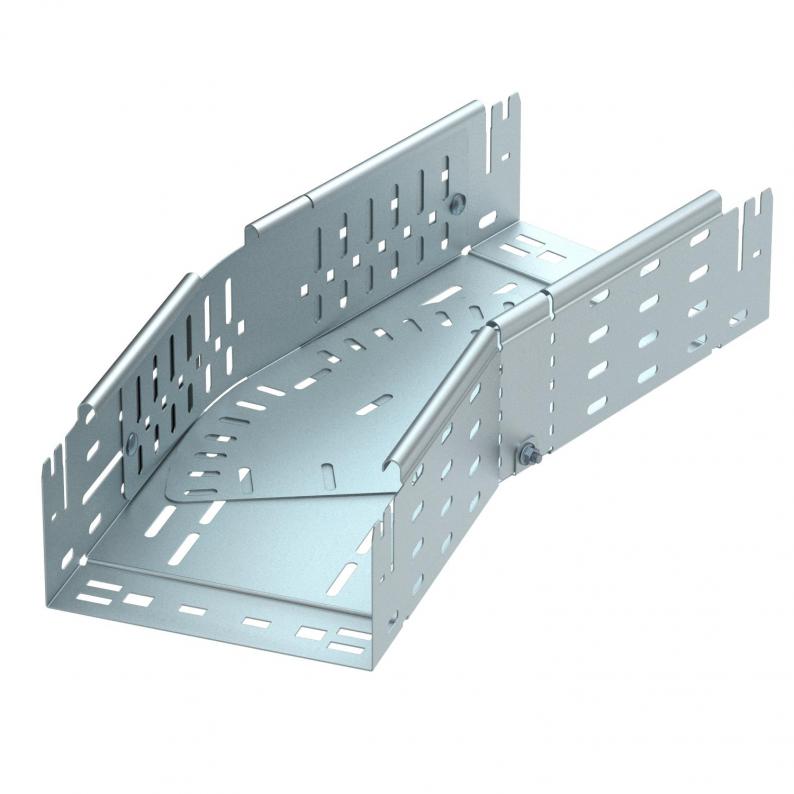

Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
Technical data

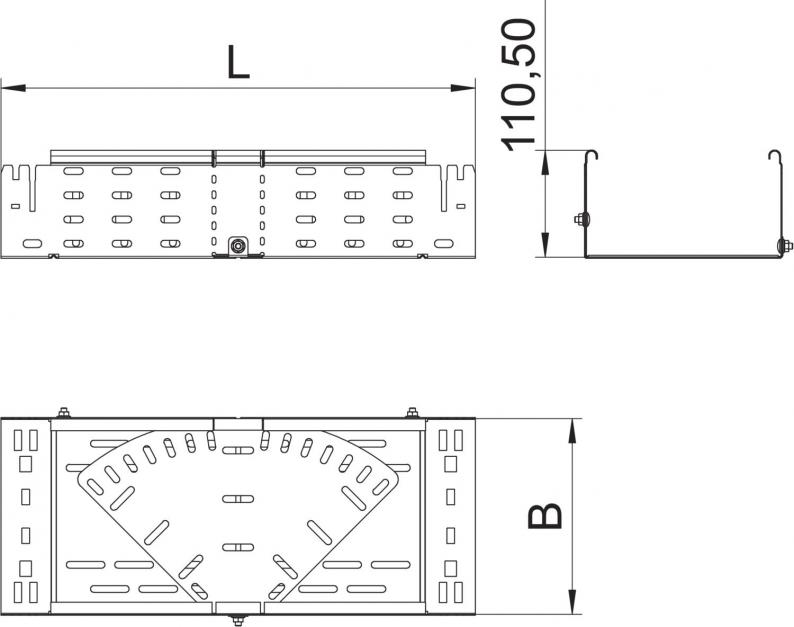

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension L | 340 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | Adjustable |
| Change of direction | Horizontal |
| Boyut | 110x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RBMV 110 FT
100
Hot-dip galvanised
Steel
6040700
RBMV 115 FT
150
Hot-dip galvanised
Steel
6040702
Width
RBMV 110 FT
Item no.
6040700
Width
100
Surface
Hot-dip galvanised
Material
Steel
RBMV 115 FT
Item no.
6040702
Width
150
Surface
Hot-dip galvanised
Material
Steel
