Magic cross-over 110 FS
Type RKM 110 FS
|Item no. 7027161
|EAN 4012195928041
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

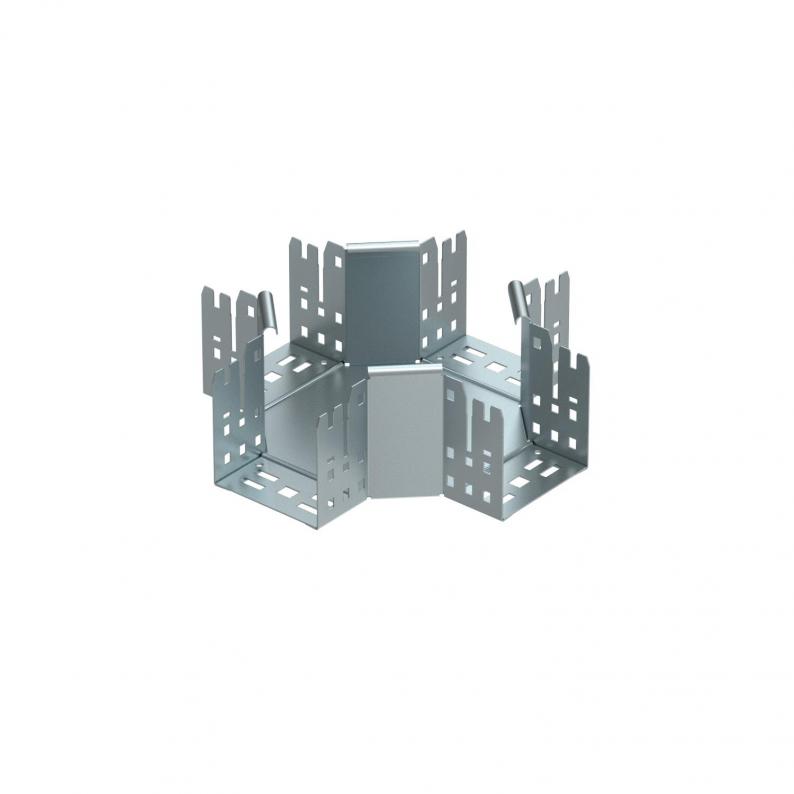

Cross-over with quick connector system. For all cable tray types of 110 mm side height.
Technical data

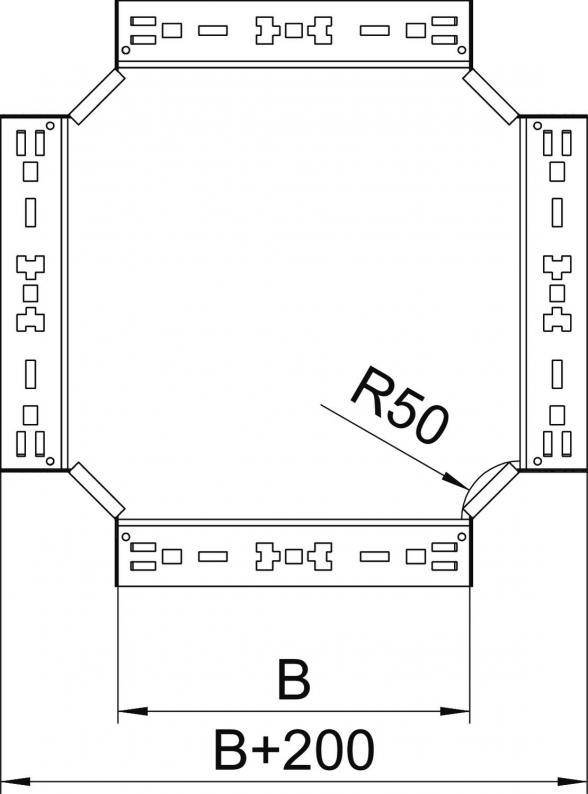

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| ROHS-conformant | yes |
| Rail thickness | 1,25 mm |
| Dimension | 110x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Item no.
RKM 110 FS
100
7027161
RKM 120 FS
200
7027165
RKM 130 FS
300
7027167
RKM 140 FS
400
7027169
Width
RKM 110 FS
Item no.
7027161
Width
100
RKM 120 FS
Item no.
7027165
Width
200
RKM 130 FS
Item no.
7027167
Width
300
RKM 140 FS
Item no.
7027169
Width
400
