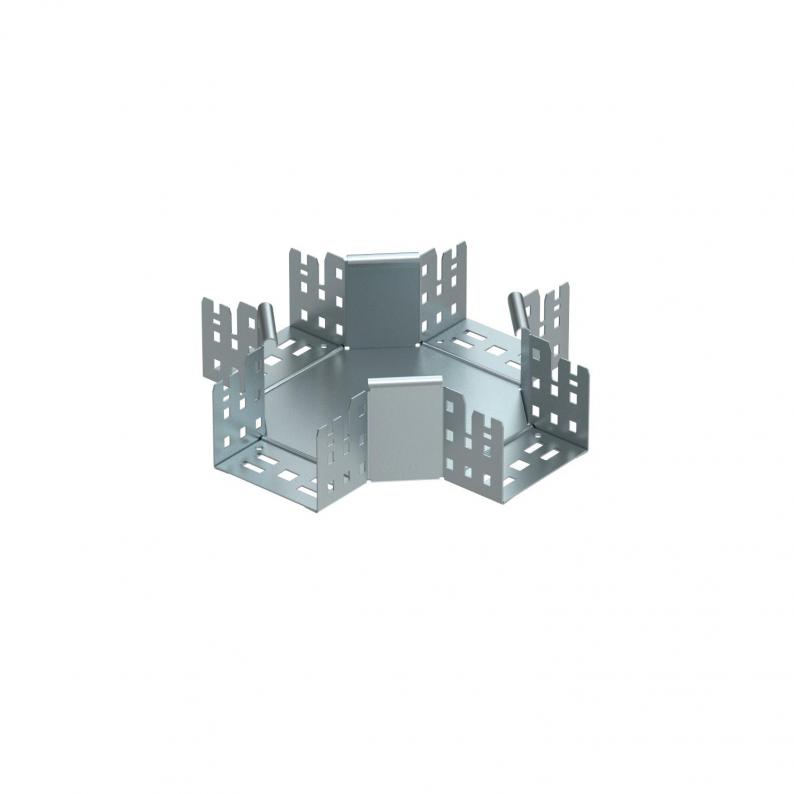

Magic cross-over 85 FS
Type RKM 810 FS
|Item no. 7027081
|EAN 4012195927761
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cross-over with quick connector system. For all cable tray types of 85 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| ROHS-conformant | yes |
| Rail thickness | 1,25 mm |
| Dimension | 85x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Item no.
RKM 810 FS
100
7027081
RKM 840 FS
400
7027089
