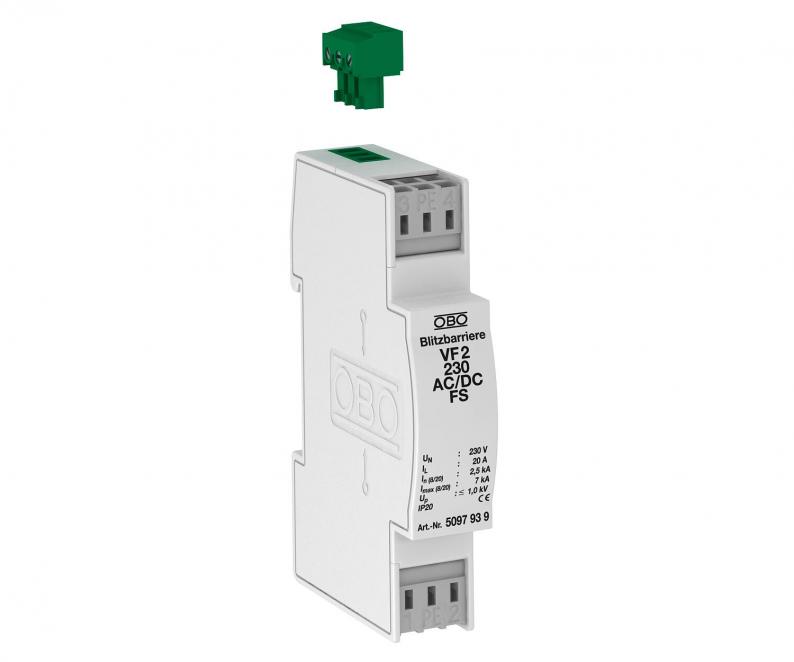

MCR protection for 2-pole for power supply with leak current-free remote signalling, 230 V AC/DC
Type VF2-230-AC/DC-FS
|Item no. 5097939
|EAN 4012195578260
Item no. / Type
5097939 / VF2-230-AC/DC-FS
Koruma sınıfı
IP20
Maximum continuous voltage AC
255 V
Maximum continuous voltage DC
350 V
Smallest selling unit: 1 piece
1piece
piece
Description
Type 3 surge protection/fine network protection to EN 61643-11 with leak current-free remote signalling
• With remote signalling: potential-free NC contact for function monitoring
• With installation-friendly, screwless connection terminals

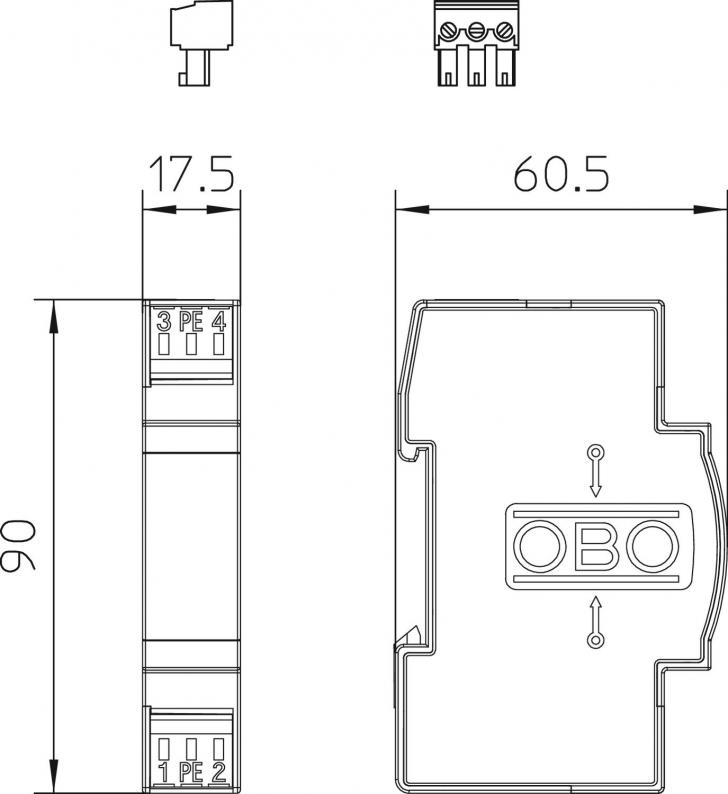

• In space-saving 17.5 mm grid
• Y circuit
Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
• With remote signalling: potential-free NC contact for function monitoring
• With installation-friendly, screwless connection terminals
• In space-saving 17.5 mm grid
• Y circuit
Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
Technical data
Technical data
| Kutup sayısı | 3 |
|---|---|
| Ağ formu | Other |
| Söndürmeli | no |
| Cihazda sinyalizasyon | None |
| Koruma seviyesi damar/damar | < 1000 V |
| Koruma seviyesi damar/toprak | < 1400 V |
| Koruma sınıfı | IP20 |
| Remote signalling | yes |
| Test class, type 3 | yes |
| Koruma seviyesi [L-N] | ≤1000 |
| Maximum continuous voltage AC | 255 V |
| Maximum continuous voltage DC | 350 V |
| Nominal discharge current (8/20 µs) | 2,5 kA |
| Installation type | DIN rail 35 mm |
| OBO_Nominal load current (input/output terminal) | 20 A |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-1 | Class III |
| EN 61643-11 standardına göre talep sınıfı | Type 3 |
| Lightning protection zone LPZ | 2→3 |
| Maximum discharge current (8/20 μs) | 7 kA |
| Devreye girme süresi | <25 ns |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 230V AC |
Connectivity options
| FM contacts | NC contact |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,14 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 2,5 mm² |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,602 kg CO2e / 1 Piece |
|---|
