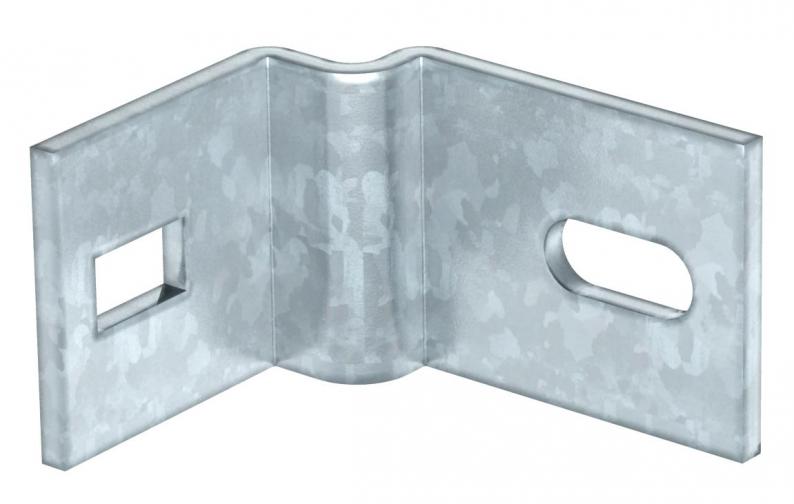

Mounting angle BW 80
Type BW 80 55 FT
|Item no. 6019528
|EAN 4012196014538
Item no. / Type
6019528 / BW 80 55 FT
Width
55 mm
Height
65 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Mounting angle for mounting IS 8 supports on the wall.
The mounting angle can also be used in conjunction with the heavy-duty vertical ladder, type SLS 80.
Including fastening bolt M12x30.
Technical data

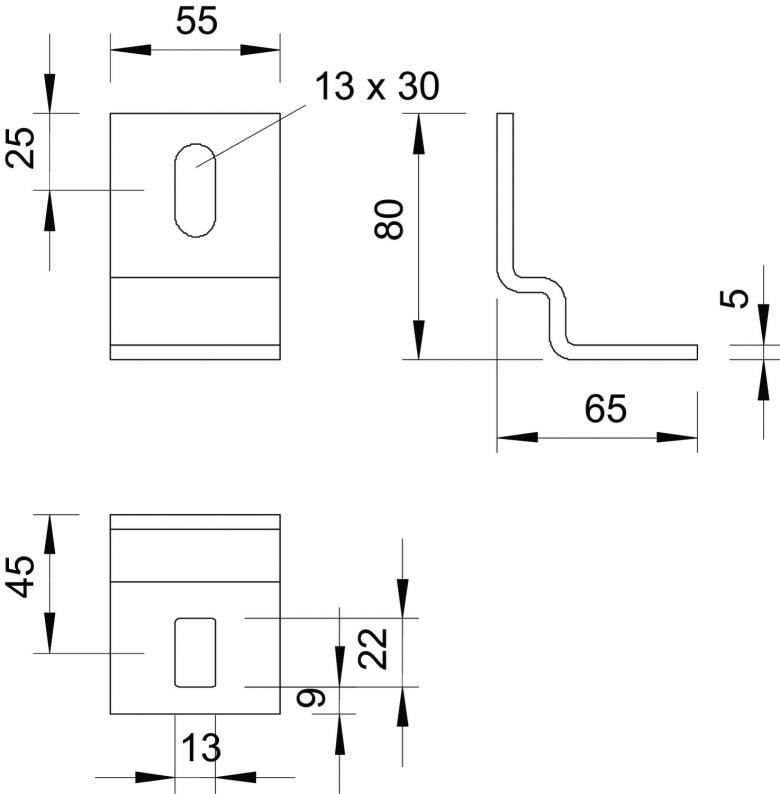

Dimensions
| Length | 80 mm |
|---|---|
| Width | 55 mm |
| Height | 65 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Ayarlanabilir | no |
| With screw accessories | yes |
| Suitable for profile shapes | I profile |
| Version for | Fastening bracket |
| Boyut | 80x65 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,7587 kg CO2e / 1 Piece |
|---|
