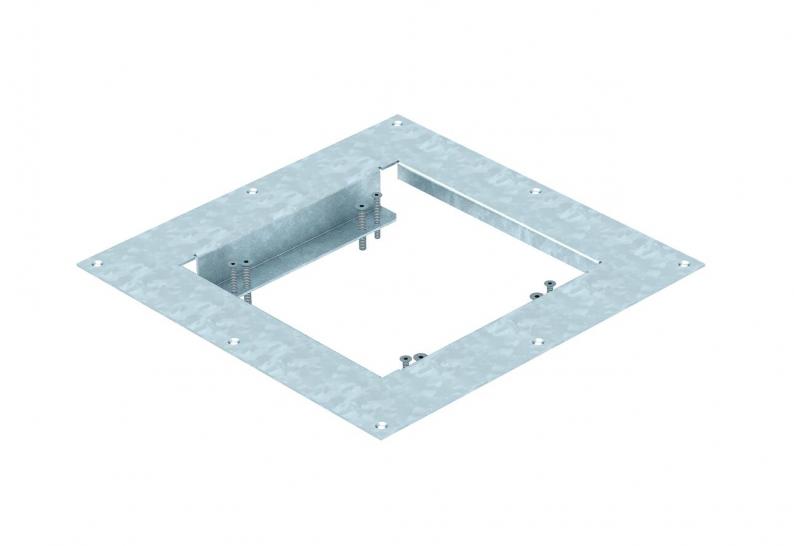

Mounting lid for height-adjustable cassette of nominal size 4 in system bases
Type DUG RK UAN 4
|Item no. 7428544
|EAN 4012195415558
Item no. / Type
7428544 / DUG RK UAN 4
Smallest selling unit: 1 piece
1piece
piece
Description
Mounting lid for the installation of height-adjustable cassettes of nominal size 4 in system floors.
Technical data

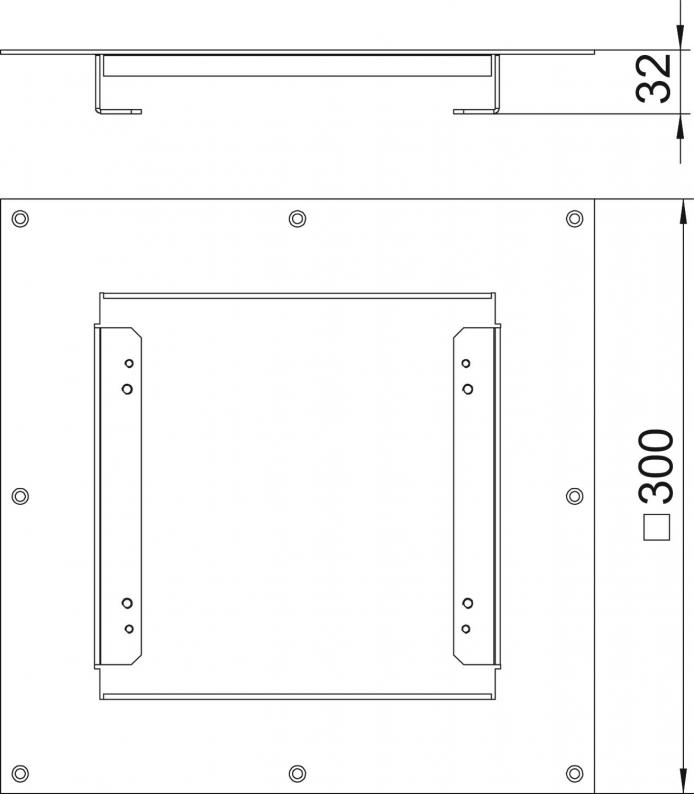

Dimensions
| Length | 300 mm |
|---|---|
| Width | 300 mm |
Technical data
| Cut-out dimensions | 204x204 mm |
|---|---|
| Heavy-duty version | no |
| Nominal size for device installation units | 4 |
| Dimension | 300x300x32 |
| Surface | Hot galvanised |
| Material | Steel |
Environmental Data
4,6614 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,6614 kg CO2e / 1 Piece |
|---|
