Mounting plate, angled FS
Type MP WI KL. FS
|Item no. 7084765
|EAN 4012196146833
Item no. / Type
7084765 / MP WI KL. FS
Width
120 mm
Height
210 mm
Smallest selling unit: 1 piece
1piece
piece
Description

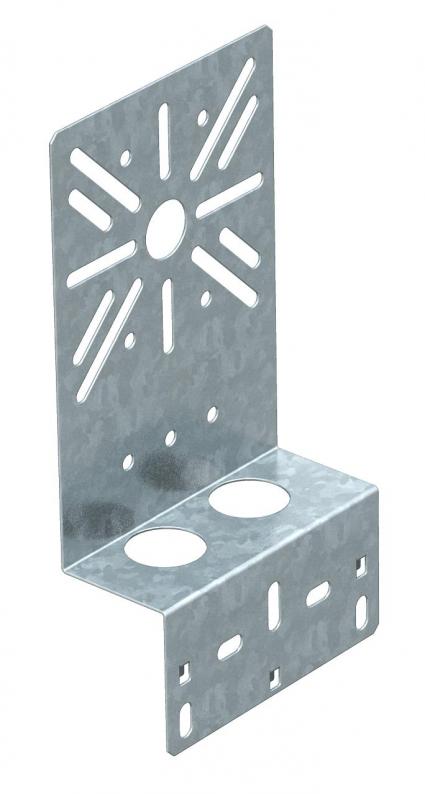

Angled mounting plate, for fixing on the side rail of the cable tray.
Please order the truss-head bolt, type FRS B6 x 12, separately.
Technical data

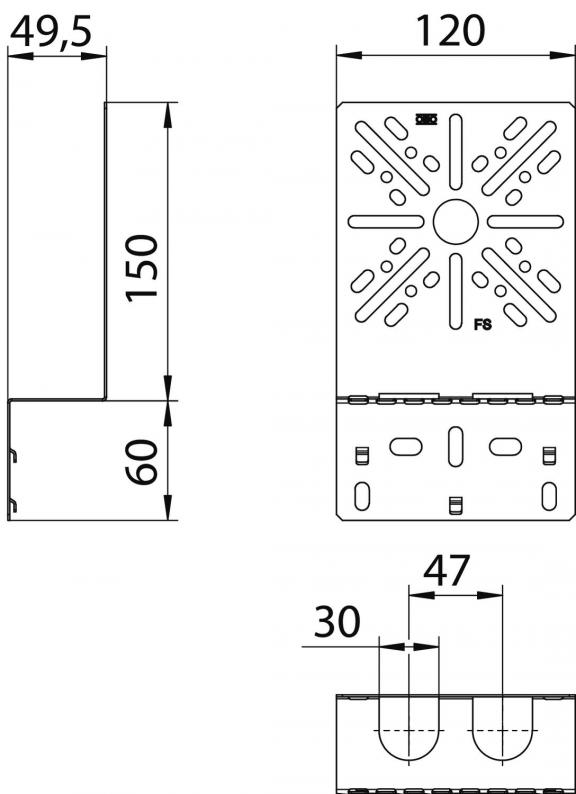

Dimensions
| Width | 120 mm |
|---|---|
| Height | 210 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Vertical |
| Boyut | 210x120 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,5493 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 2007831
Fastening pin for mounting platesType
T-S MST
Smallest selling unit: 100 piece
100piece
piece
