Mounting plate, angled FS

Mounting plate, angled FS

Type MP WI GR. FS
|
Item no. 7084781
|
EAN 4012196146956
Show all variants
Item no. / Type
7084781 / MP WI GR. FS
Width
200 mm
Height
240 mm

Smallest selling unit: 1 piece

piece

Description

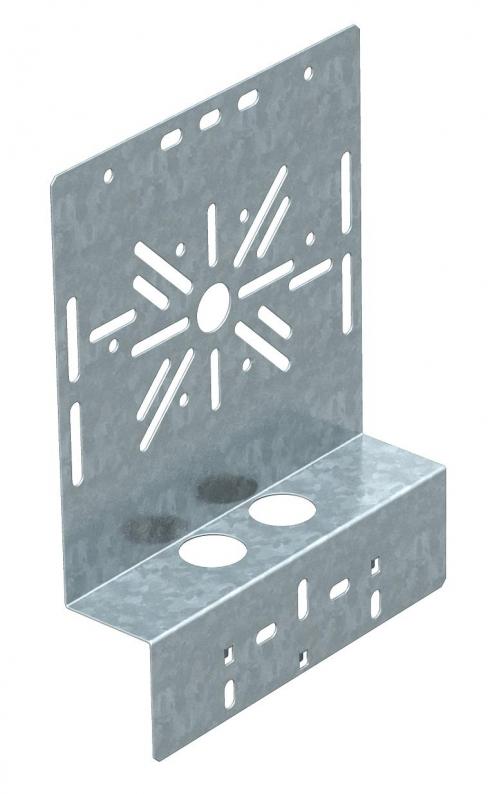

Angled mounting plate, for fastening on the side rail of the cable tray.

Please order the truss-head bolt, type FRS B6 x 12, separately.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

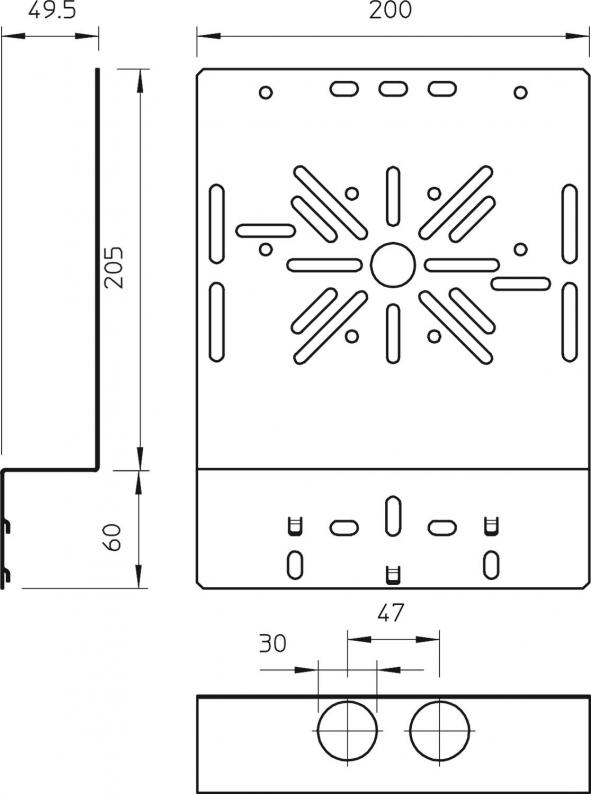

Dimensions

Width200 mm
Height240 mm

Technical data

Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Fastening typeScrew fastening
Version forVertical
Boyut265x200
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,2242 kg CO2e / 1 Piece

Accessories

Mounting accessories
Type
T-S MST

Smallest selling unit: 100 piece

piece
