Mounting support for GES9

Type MT 9 DB AP 5
Item no. 7428235
EAN 4012195415251
Item no. / Type
7428235 / MT 9 DB AP 5

Smallest selling unit: 1 piece

piece

Description

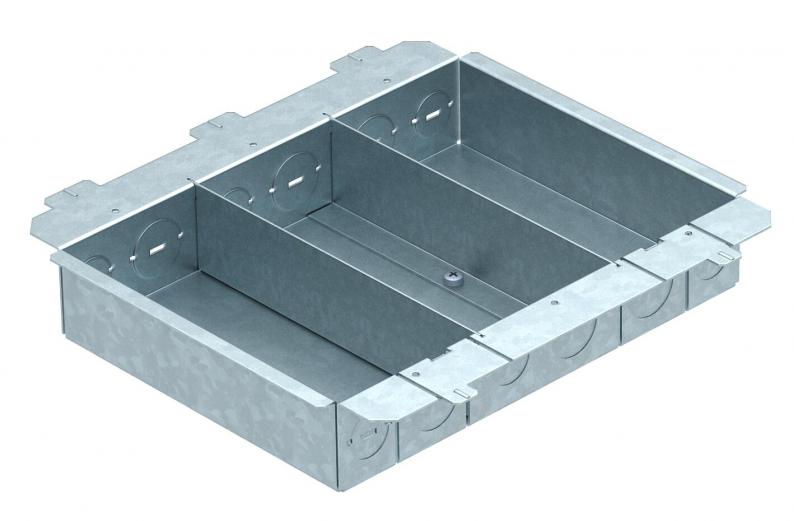

Closed mounting support for receiving 3 APMT5 cover plates. The mounting support is fastened below the GES9DB service outlet. Each with 6 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

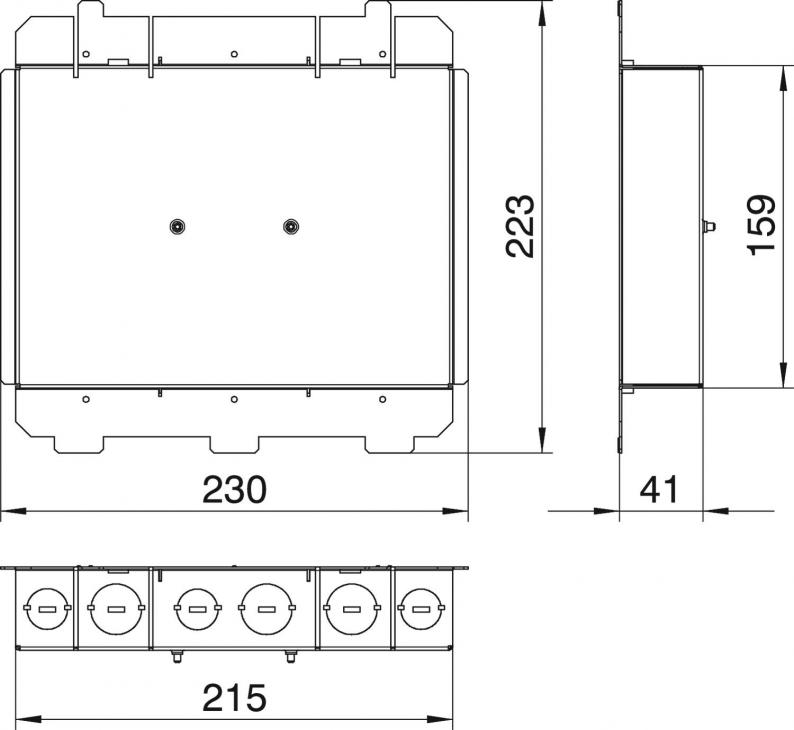

Dimensions

Length215 mm
Width215 mm
Height41 mm

Technical data

Number of installable devices3
Suitable for raised floor installationyes
Accessory mounting typeBolts
Version forSupport shape
ROHS-conformantyes
Dimension230x207x41
SurfaceStrip galvanised
MaterialSteel

Environmental Data

2,8456 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate2,8456 kg CO2e / 1 Piece
CO₂ Footprint (GWP)2,8456 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
