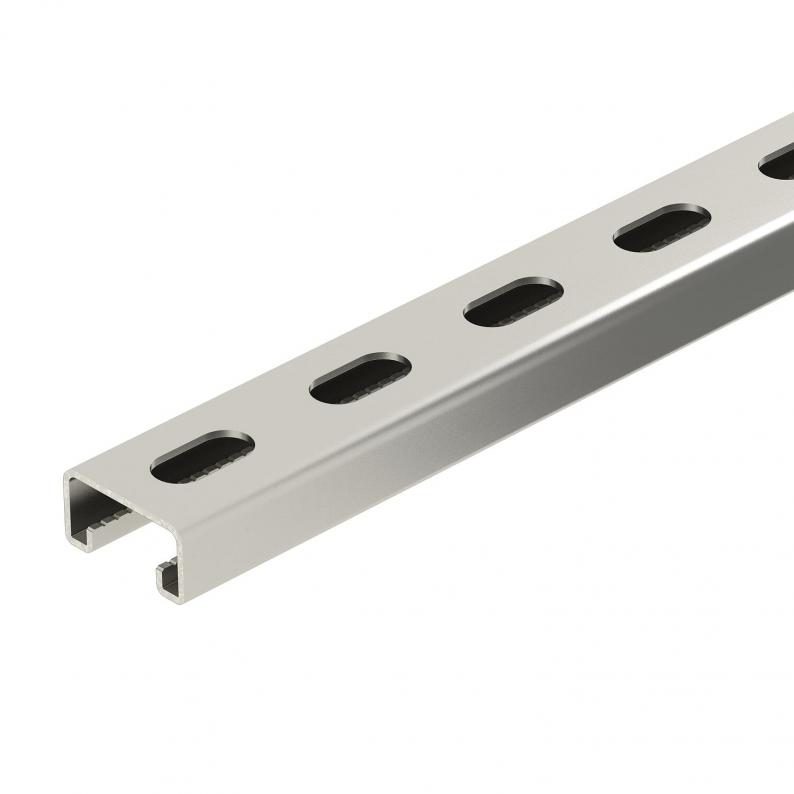

MS4121P mounting rail, slot 22 mm, perforated A2
Type MS4121P0500A2
|Item no. 1122930
|EAN 4012196427239
Item no. / Type
1122930 / MS4121P0500A2
Length
500 mm
Width
41 mm
Height
21 mm
Material thickness
2 mm
Surface
Bright, treated
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Technical data

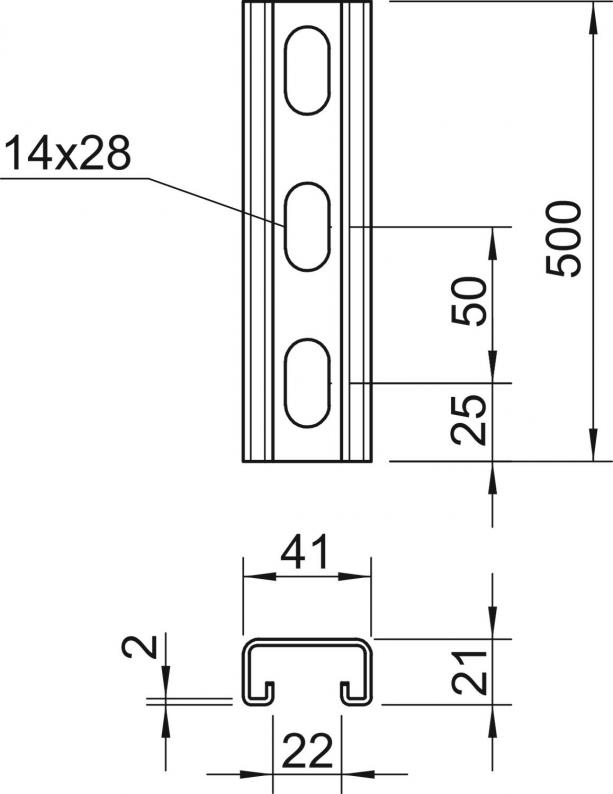

Dimensions
| Length | 500 mm |
|---|---|
| Width | 41 mm |
| Height | 21 mm |
| Dimension L | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Slot width | 22 mm |
| Material thickness | 2 mm |
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Hole size | 14x28 |
| Profile shape | C profile |
| Type of perforation | Perforated back |
| Drill hole spacing, centre | 50 mm |
| With perforation | yes |
| Breakable | no |
| With toothing | yes |
| Version for | Single profile |
| Dimension | 500x41x21 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Environmental Data
3,6462 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6462 kg CO2e / 1 Piece |
|---|
