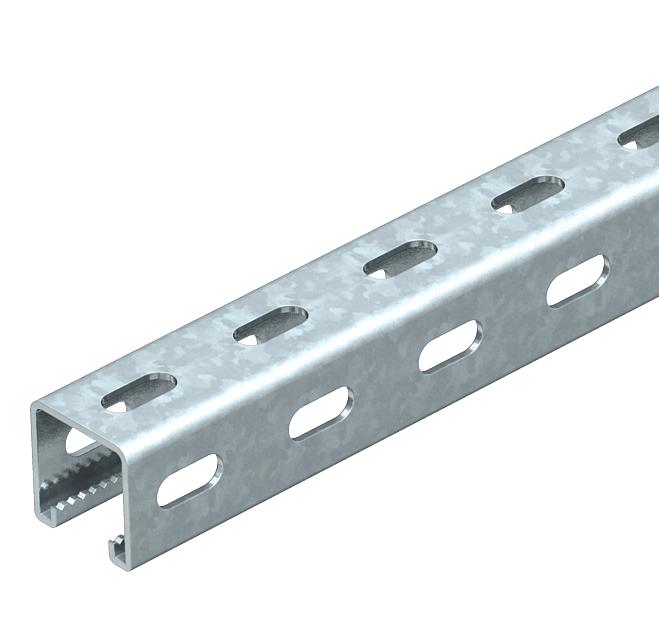

MS4141PP mounting rail, slot 22 mm, FT, perforated

MS4141PP mounting rail, slot 22 mm, FT, perforated

Type MS4141PP0300FT
|
Item no. 1122500
|
EAN 4012195356325
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 piece

piece

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

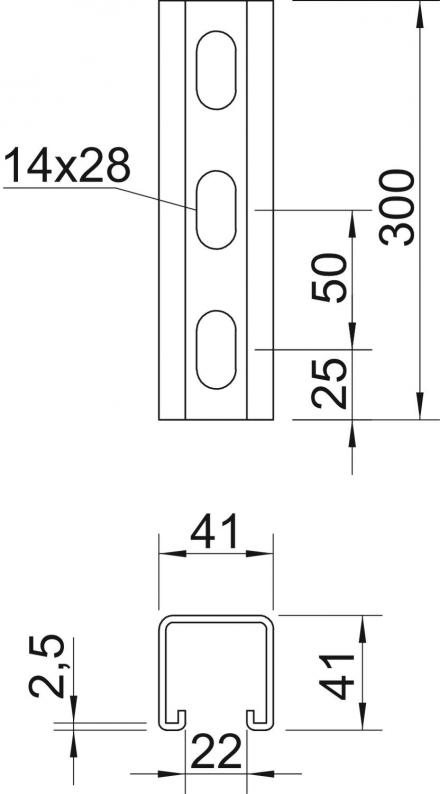

Dimensions

Length300 mm
Width41 mm
Height41 mm
Dimension L300 mm

Technical data

Maintain electrical functionsyes
Slot width22 mm
Material thickness2,5 mm
Static value A2,42 cm²
Static value ly6 cm⁴
Static value lz6,97 cm⁴
Static value Wy2,49 cm³
Static value Wz2,88 cm³
Hole size11x25
Profile shapeC profile
Type of perforation3 sides perforated
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingyes
Version forSingle profile
Dimension300x41x41
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

1,6882 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,6882 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS4141PP0300FT
Item no.
1122500
Length
300
Width
41
Height
41
Material thickness
2,5
Surface
Hot-dip galvanised
MS4141PP0400FT
Item no.
1122501
Length
400
Width
41
Height
41
Material thickness
2,5
Surface
Hot-dip galvanised
