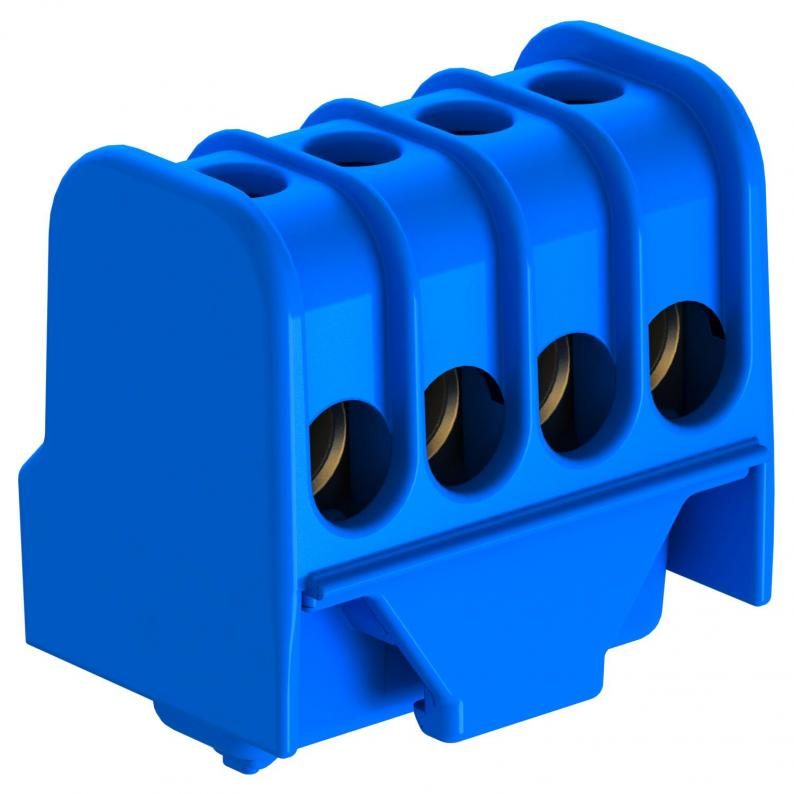

Neutral conductor terminal, with screw contacts, 4 terminals

Neutral conductor terminal, with screw contacts, 4 terminals

Type KL-DBN4x16BL
|
Item no. 2016255
|
EAN 4012196474226
Show all variants
Item no. / Type
2016255 / KL-DBN4x16BL
Nominal cross-section, min.
6 mm²
Nominal cross-section, max.
16 mm²

Smallest selling unit: 10 piece

piece

Description

Neutral conductor connection terminal, brass, steel screws, electrogalvanised and transparently passivated, nominal cross-section 6 ÷ 16 mm², nominal voltage 400 V, 1-pole, with terminal sockets, max. connectable conductors per terminal 4 x 16 mm², 4 x 10 mm², 8 x 6 mm² or 12 x 4 mm².
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Technical data

Pole number1
Nominal current76 A
Nominal voltage400 V
Closing plate requiredno
Insulation materialThermoplast
Number of screwless terminals per pole1
Version of electrical connection 1Screw connection
Connection positionSide
Connectable conductor cross-section, single-wire, min.4 mm²
Connectable conductor cross-section, single-wire, max.16 mm²
Nominal cross-section, min.6 mm²
Nominal cross-section, max.16 mm²
Cross-sectionmax. connectable conductors per terminal max. 4 x 16 mm², 4 x 10 mm², 8x6 mm² or 12 x 4 mm² mm²
Dimension4x16mm²
MaterialPolyamide
ColourBlue

Environmental Data

0,0849 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0849 kg CO2e / 1 Piece
