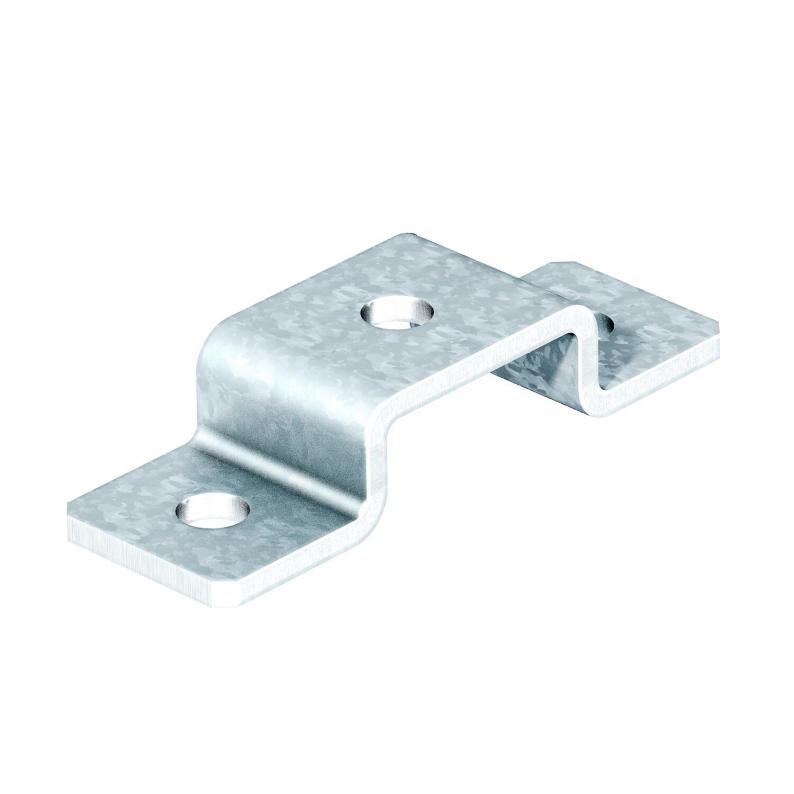

Omega clamp FT
Type GMS 3 O 4121 FT
|Item no. 1124671
|EAN 4012195486152
Item no. / Type
1124671 / GMS 3 O 4121 FT
Length
150 mm
Width
40 mm
Version for
With continuous perforation 13 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Fastening clip with 3 holes for cross-wise connection of profile rails 41 x 21 mm.
Technical data

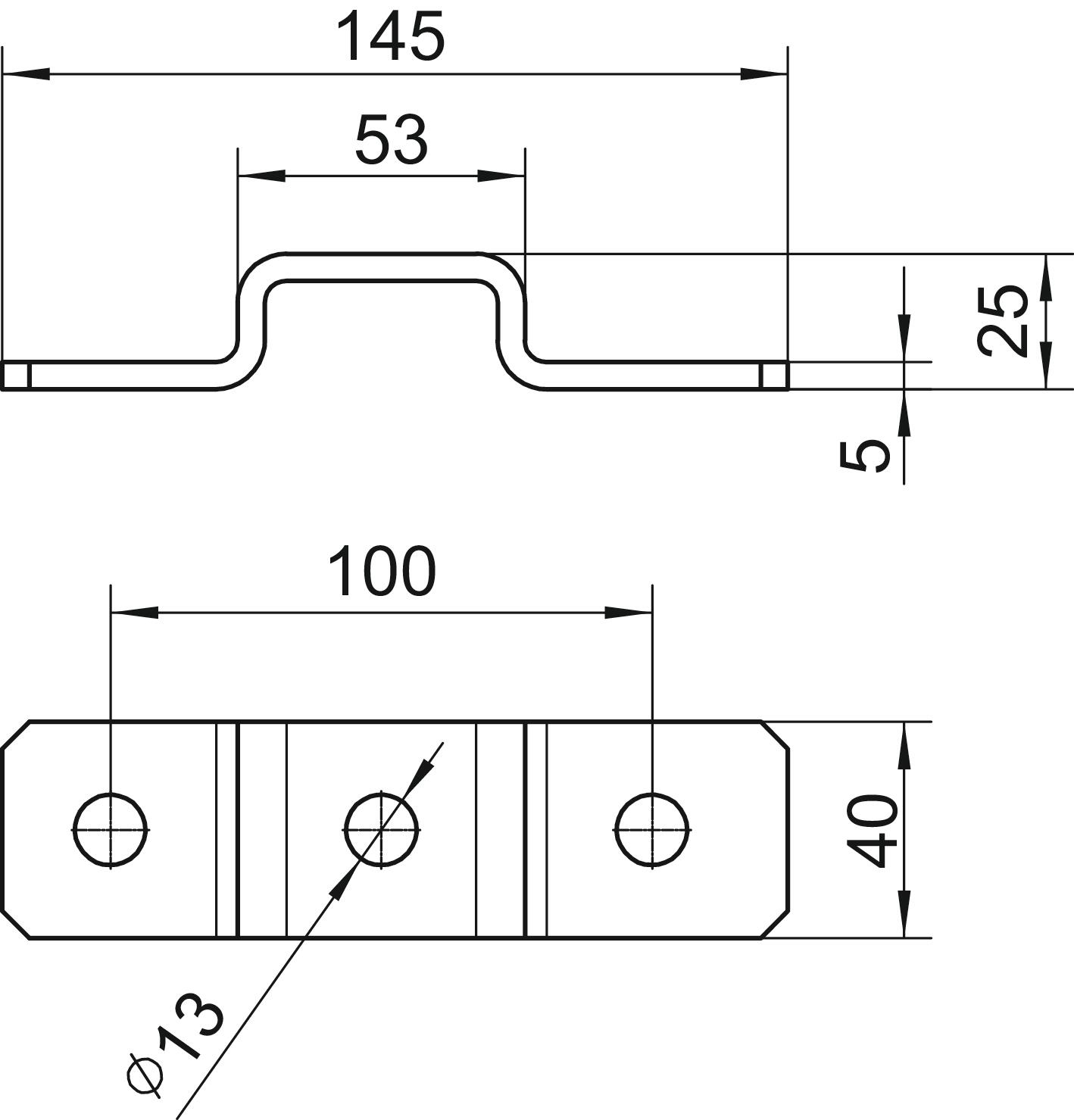

Dimensions
| Length | 150 mm |
|---|---|
| Width | 40 mm |
| Height | 25 mm |
Technical data
| Material thickness | 5 mm |
|---|---|
| Hole size | 13 |
| With screw accessories | no |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profile |
| Dimension | 150x25x40x5 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
0,5528 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5528 kg CO2e / 1 Piece |
|---|
