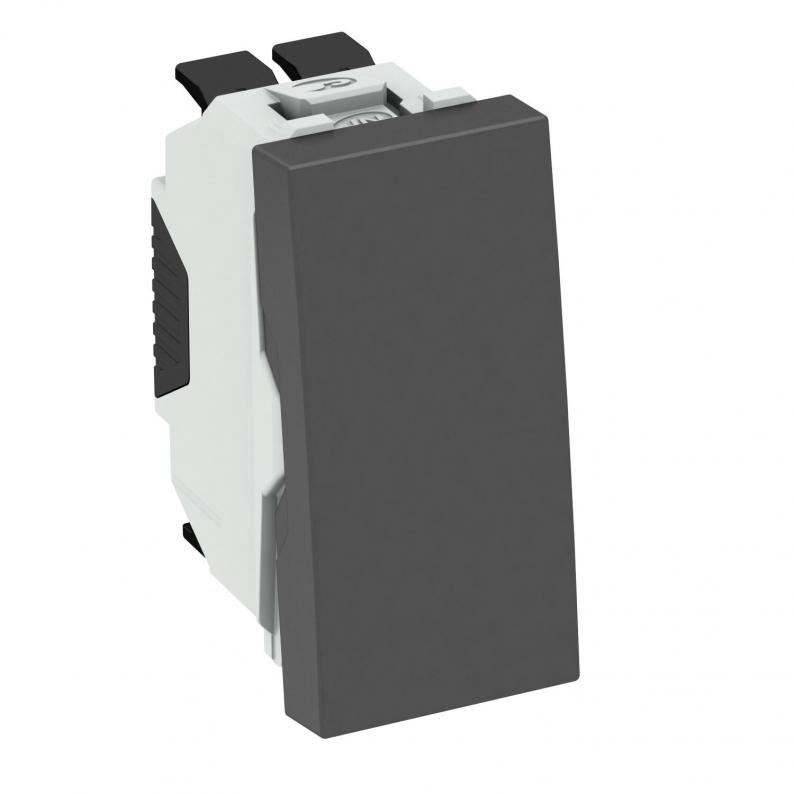

One-way/changeover switch, 1/2 module
Type WS-UB SWGR0.5
|Item no. 6120922
|EAN 4012196570812
Item no. / Type
Width
Warning light
Smallest selling unit: 1 piece
1piece
piece
Description
Changeover switch 1-pin, 10 A, 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

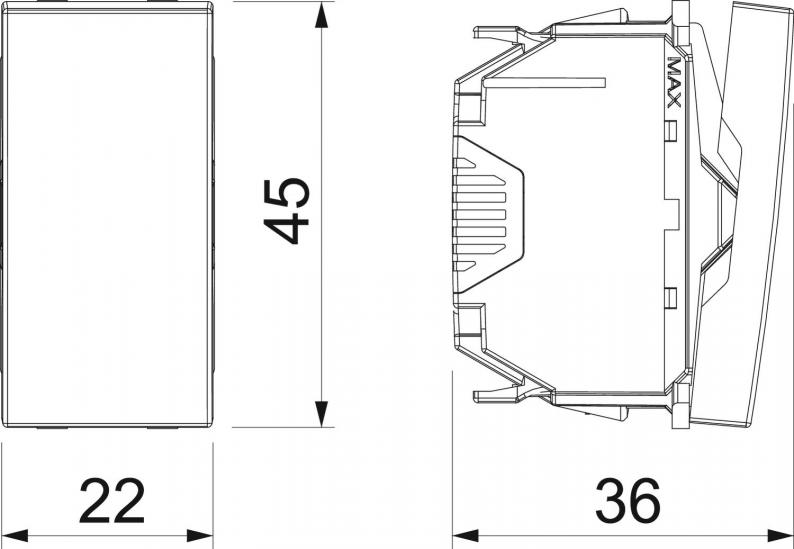

Dimensions
| Width | 22 mm |
|---|---|
| Height | 45 mm |
Technical data
| Warning light | no |
|---|---|
| Halojen İçermez | yes |
| Etiket alanı | no |
| Koruma sınıfı | IP20 |
| Nominal current | 10 A |
| Anma gerilimi | 250 V |
| Depth | 36 mm |
| Surface version | Matt |
| Mounting type | Device installation duct |
| Fastening type | Lock |
| Connection type | Screwless terminal |
| Text box/labelling area | no |
| Illumination | no |
| Circuit type | Changeover switch |
| Boyut | 10 A, 250 V |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Warning light
Item no.
WS-UB SWGR0.5
22
hayır
6120922
WS-UKL SWGR0.5
22
evet
6120928
WS-UB SWGR1
45
hayır
6120934
WS-UKL SWGR1
45
yes
6120940
