Partition GA-TW90
Type GA-TW90
|Item no. 6279714
|EAN 4012195770046
Item no. / Type
6279714 / GA-TW90
Length
2000 mm
Uygun kanal derinliği
90
Smallest selling unit: 2 m
2m
m
Description
Partition to divide the Rapid 80 GA, Rapid IBIS aluminium device installation trunking and ISS service poles for the installation of different voltage levels.
For vertical mounting of device installation trunking and the installation of ISS service poles, the duct clamps, type KL80A, are required for secure fixing of the partition.
For vertical mounting of device installation trunking and the installation of ISS service poles, the duct clamps, type KL80A, are required for secure fixing of the partition.
Technical data

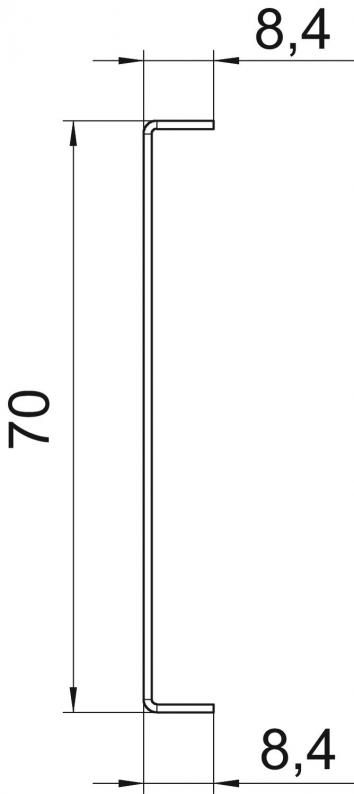

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 71 mm |
| Height | 8,4 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Uygun kanal derinliği | 90 |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK10 |
| Fastening type | Insertable |
| Version for | Single |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 8,4x70x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,809 kg CO2e / 1 Meter |
|---|
