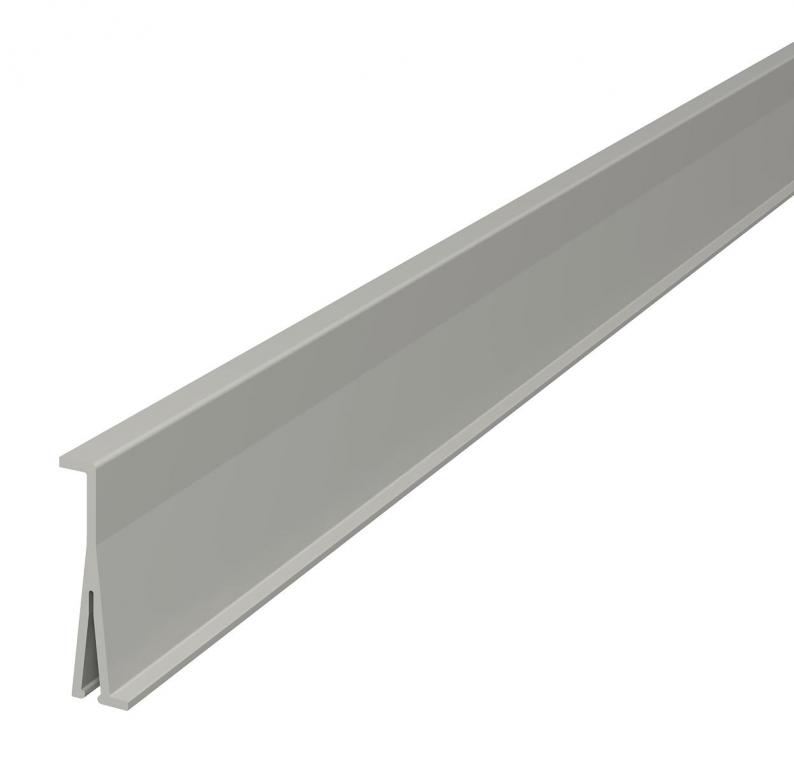

Partition, halogen-free, for trunking height 60 mm

Partition, halogen-free, for trunking height 60 mm

Type WDKH-TW60LGR
|
Item no. 6175504
|
EAN 4012195812524
Show all variants
Item no. / Type
6175504 / WDKH-TW60LGR
Length
2000 mm

Smallest selling unit: 2 m

m

Description

Partition to divide the WDKH trunking of 60 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

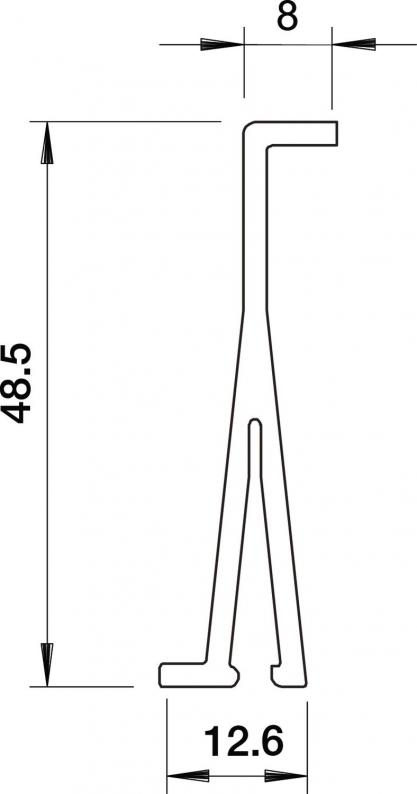

Dimensions

Length2000 mm
Width12,6 mm
Height48,5 mm
Dimension a2000 mm

Technical data

Halogen-freeyes
Self-extinguishingyes
Protection ratingIP30
Protection rating IK codeIK07.
Version forSingle
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension15x50x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035
Antibacterial treatmentno

Environmental Data

1,195 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,195 kg CO2e / 1 Meter
