Partition LKM TWS55

Partition LKM TWS55

Type LKM TWS55
|
Item no. 6249876
|
EAN 4012196644896
Show all variants
Item no. / Type
6249876 / LKM TWS55
Length
2000 mm

Smallest selling unit: 2 m

m

Description

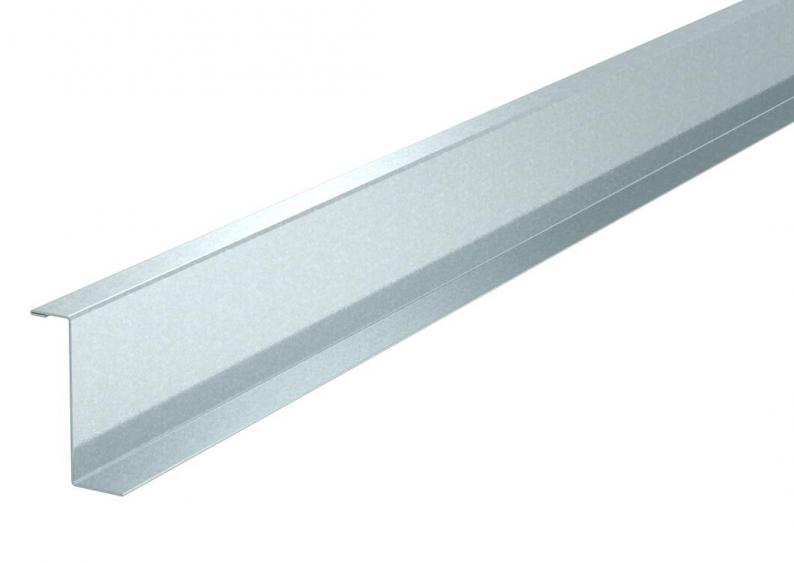

Partition to divide the LKM cable routing trunking, 60 mm trunking height, for different voltage levels.
The loop perforation in the base transfers the equipotential bonding to the partition.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width33 mm
Height55 mm
Dimension a55 mm

Technical data

Halogen-freeyes
Self-extinguishingno
Protection ratingIP30
Protection rating IK codeIK10
Version forSingle
Fastening typePlug-in
Trunking depth60 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension55x2000mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Antibacterial treatmentno

Environmental Data

1,3103 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,3103 kg CO2e / 1 Meter
