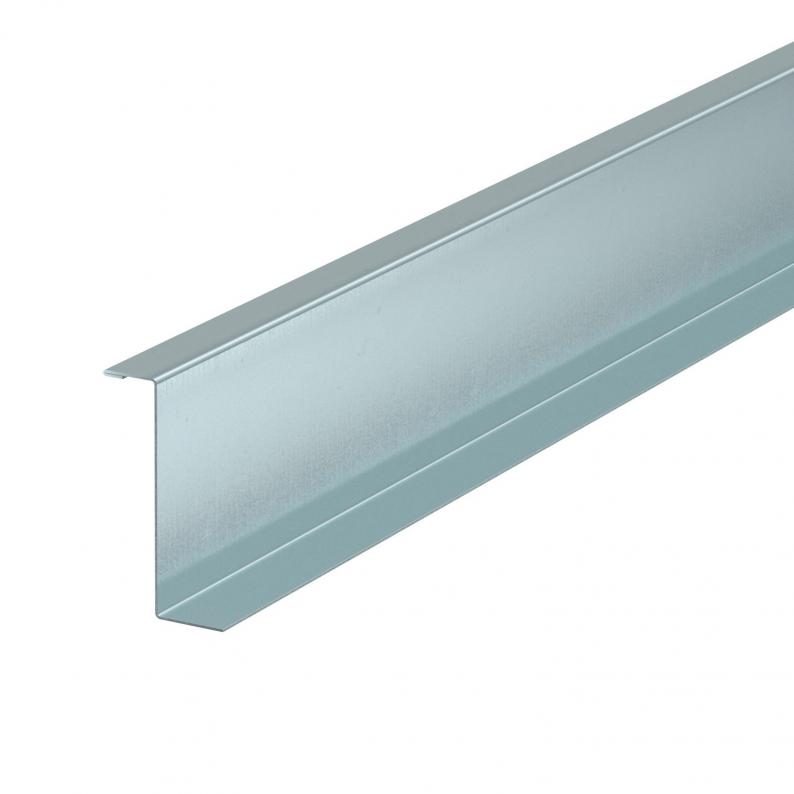

Partition LKM TWS75

Partition LKM TWS75

Type LKM TWS75
|
Item no. 6249880
|
EAN 4012195762898
Show all variants
Item no. / Type
6249880 / LKM TWS75
Length
2000 mm

Smallest selling unit: 2 m

m

Description

Partition to divide the LKM cable routing trunking, 80 mm trunking height, for different voltage levels.


The loop perforation in the base transfers the equipotential bonding to the partition.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2000 mm
Width33 mm
Height60 mm
Dimension a60 mm

Technical data

Halogen-freeyes
Self-extinguishingno
Protection ratingIP30
Protection rating IK codeIK10
Version forSingle
Fastening typePlug-in
Trunking depth80 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension75x2000mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Antibacterial treatmentno

Environmental Data

1,4111 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,4111 kg CO2e / 1 Meter
