Partition TWP

Partition TWP

Type TWP
Item no. 6288264
EAN 4012195147510
Show all variants
Item no. / Type
6288264 / TWP
Length
2000 mm
Suitable for duct depth
133

Smallest selling unit: 2 m

m

Description

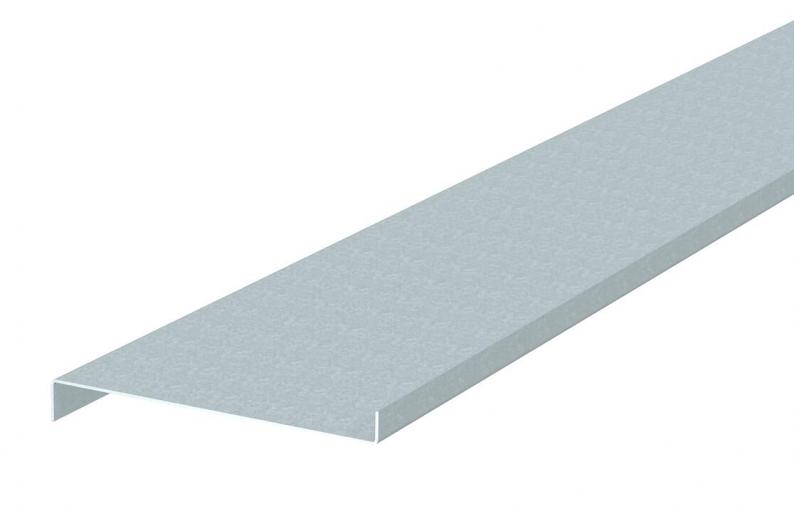

Partition for desk trunking to divide the trunking for different voltage levels.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2000 mm
Width14 mm
Height92 mm

Technical data

Halogen-freeyes
Suitable for duct depth133
Protection ratingIP30
Protection rating IK codeIK10
Fastening typePlug-in
Version forSingle
ROHS-conformantyes
Permitted temperature range, min.-25 °C
Permitted temperature range, max.60 °C

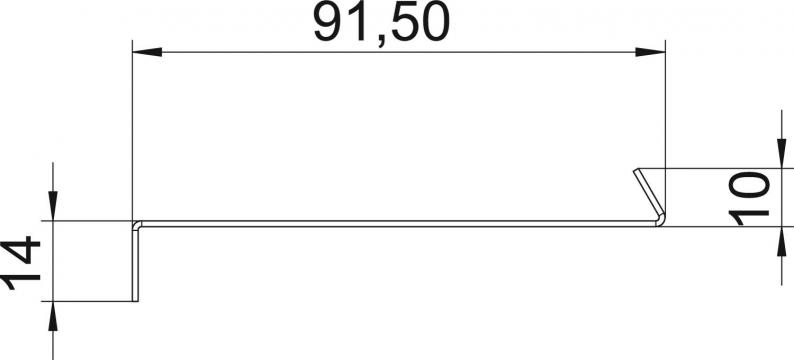

Dimension14x92x2000
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Product seriesRapid 80®

Environmental Data

2,2713 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,2713 kg CO2e / 1 Meter
CO₂ Footprint (GWP)2,2713 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1
