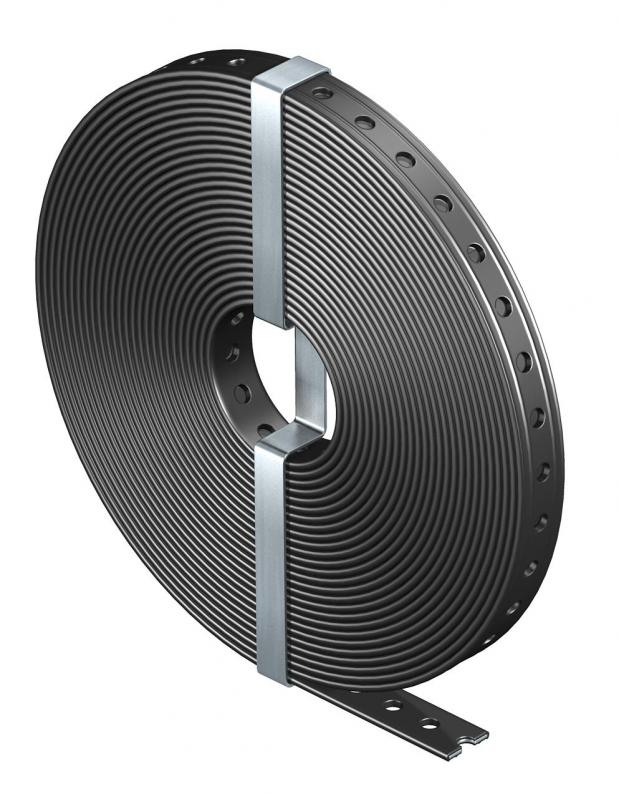

Perforated steel strap, plastic-coated
Type 5055 L PE I 14
|Item no. 1473220
|EAN 4012195139393
Item no. / Type
Dimension A
Hole diameter
Ölçü
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
PE plastik kılıflı delikli montaj bandı.
Technical data

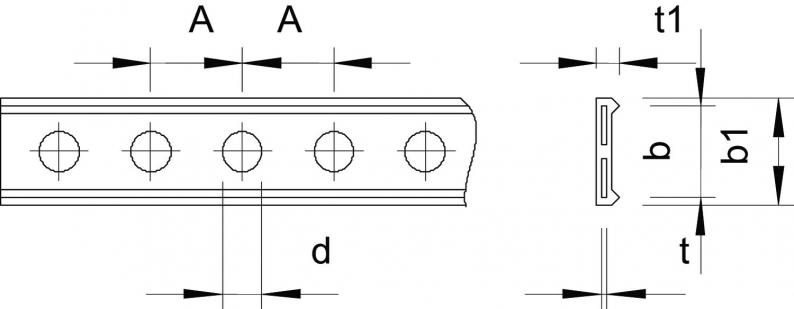

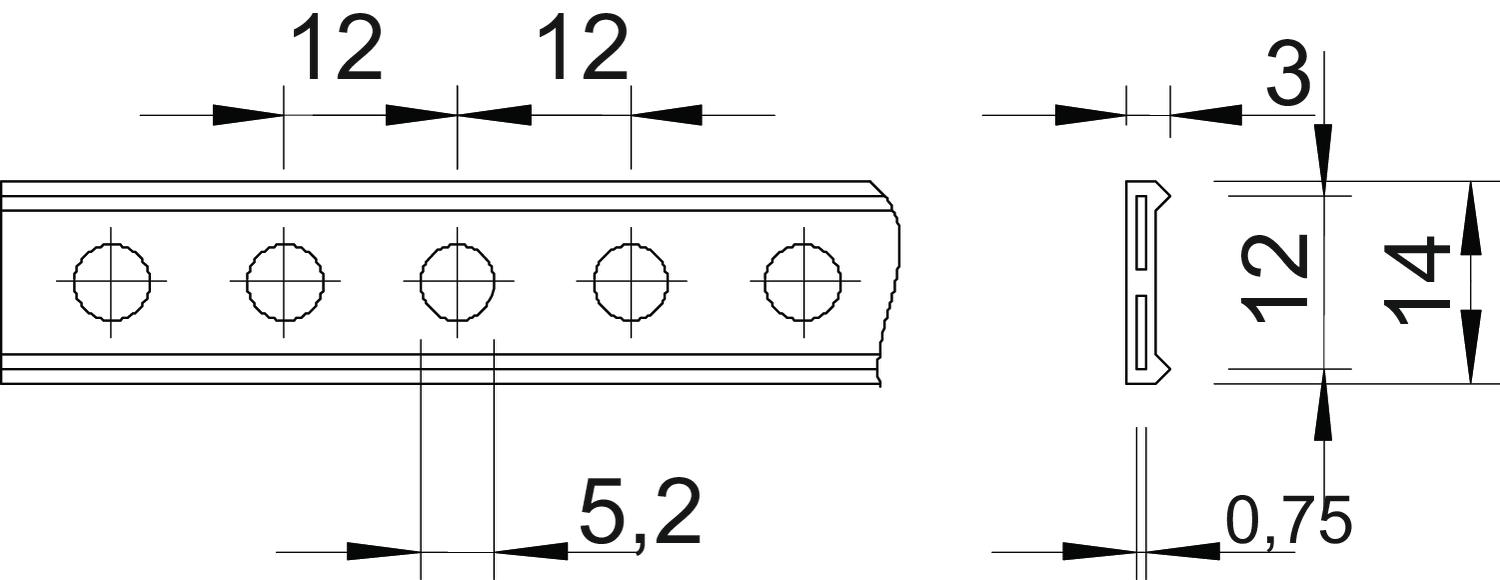

Dimensions
| Dimension A | 12 mm |
|---|---|
| Dimension d | 5,2 mm |
| Dimension t | 0,75 mm |
| Dimension b | 12 mm |
| Dimension b1 | 14 mm |
| Ölçü t1 (mm) | 3 |
Technical data
| Halojen İçermez | evet |
|---|---|
| Boyut | I |
| Perforation | yuvarlak |
| With perforation | evet |
| Hole diameter | 5,2 mm |
| Ölçü | 14 x 3 |
| Bobin başına | 10 |
| Version for | delikli |
| Boyut | 14x3mm |
| Surface | Strip galvanized / plastic coated |
| Material | Steel |
| Colour | Black |
| Type of band | Straight |
| In the holder | no |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)
Variants
Type
Dimension A
Hole diameter
Ölçü
Colour
Item no.
MZ024 PE l 14
9
5,1
13,5 x 2
Black
1475902
MZ024 PE II 19
15
6,5
18,5 x 2
Black
1475904
MZ024 PE III 27
16
8,5
27 x 3
Black
1475907
5055 L PE I 14
12
5,2
14 x 3
Black
1473220
5055 L PE II 19
15
6,5
19 x 3
Black
1473271
5055 L PE III 28
20
8,5
28 x 3,7
Black
1473360
Dimension A
Hole diameter
Ölçü
MZ024 PE l 14
Item no.
1475902
Dimension A
9
Hole diameter
5,1
Ölçü
13,5 x 2
Colour
Black
MZ024 PE II 19
Item no.
1475904
Dimension A
15
Hole diameter
6,5
Ölçü
18,5 x 2
Colour
Black
MZ024 PE III 27
Item no.
1475907
Dimension A
16
Hole diameter
8,5
Ölçü
27 x 3
Colour
Black
5055 L PE I 14
Item no.
1473220
Dimension A
12
Hole diameter
5,2
Ölçü
14 x 3
Colour
Black
5055 L PE II 19
Item no.
1473271
Dimension A
15
Hole diameter
6,5
Ölçü
19 x 3
Colour
Black
5055 L PE III 28
Item no.
1473360
Dimension A
20
Hole diameter
8,5
Ölçü
28 x 3,7
Colour
Black
