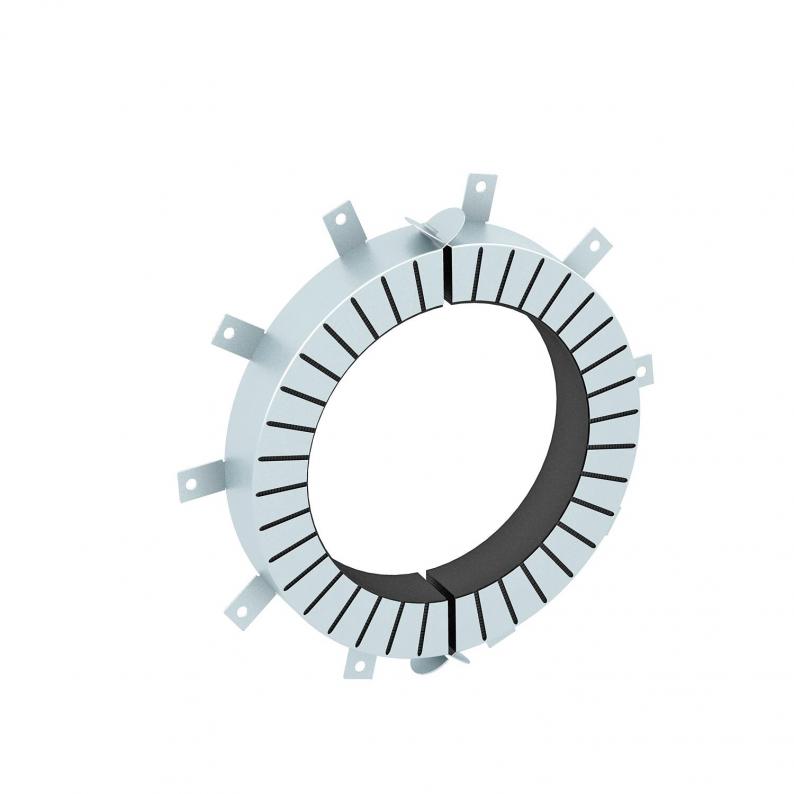

Pipe sleeve with 10 fastening straps

Type TCX-225

Item no. 7202213

EAN 4012196086924

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

For pipe diameter, min.

For pipe diameter, max.

Dimension d

Dimension d min.

Dimension h

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Pipe sleeve for combustible pipes.

If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.

Technical data

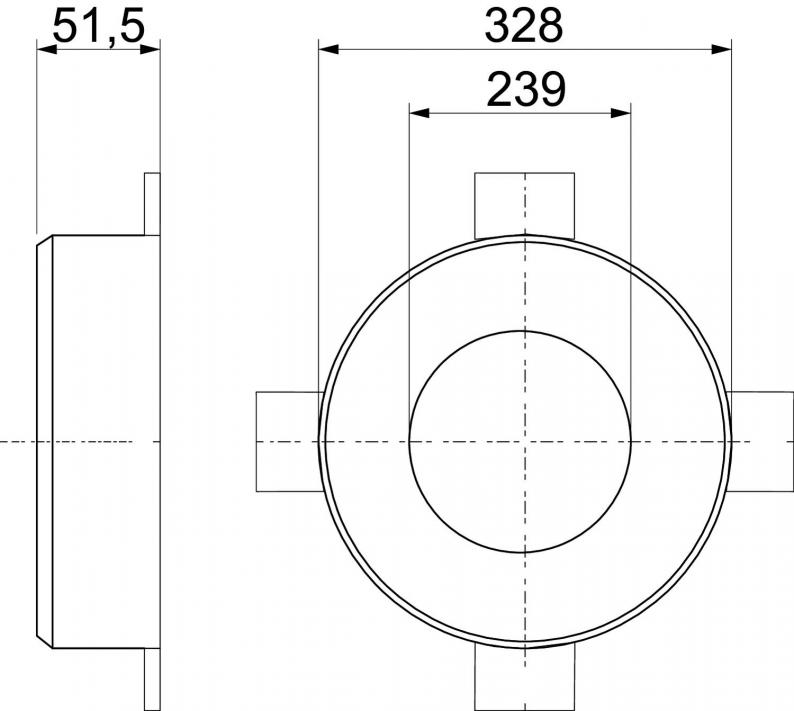

Dimensions

Length	328 mm
Width	328 mm
Height	51,5 mm
Dimension d	239 mm
Dimension d min.	328 mm
Dimension h	51,5 mm

Technical data

For pipe diameter, min.	225 mm
For pipe diameter, max.	227 mm
Accessories required	yes
Dimension	Ø225mm
Surface	Strip galvanised
Material	Intumescent material
Colour	zinc

Accessories

System accessories

Item no. 7202300

Insulation layer creator in a cartridge

Type

DSX-K

Smallest selling unit: 1 piece

piece

Item no. 7205425

Identification plate DE

Type

KS-S DE

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (2)

Catalogues & Flyers (3)

Declarations (3)

Certificates (2)

Instructions and Aid (3)

Product images (2)

Tender specifications (1)

Variants

For pipe diameter, min.

For pipe diameter, max.

Dimension d

Dimension d min.

TCX-225

Item no.

7202213

For pipe diameter, min.

225

For pipe diameter, max.

227

Dimension d

239

Dimension d min.

328

Dimension h

51,5

TCX-250

Item no.

7202215

For pipe diameter, min.

250

For pipe diameter, max.

252

Dimension d

264

Dimension d min.

353

Dimension h

51,5
