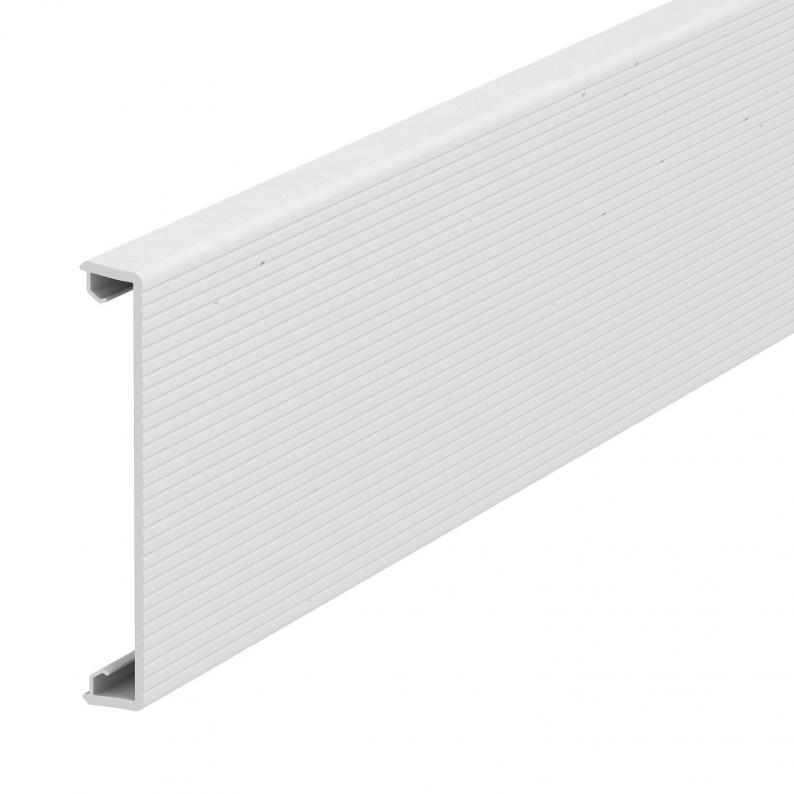

Plastic trunking cover, fluted
Type GK-OTKRW
|Item no. 6278780
|EAN 4012195666530
Item no. / Type
Length
Colour
Smallest selling unit: 2 m
2m
m
Description
Fluted trunking cover, for closing device installation trunking with 76.5 mm system opening.
Technical data

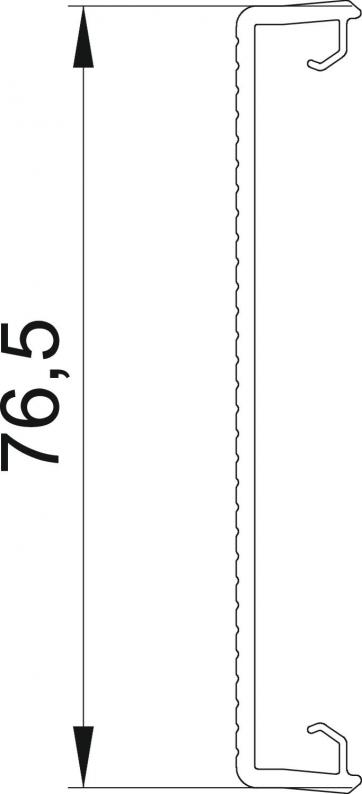

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halojen İçermez | no |
|---|---|
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Üst parçaların montaj şekli | Internal |
| Protection rating IK code | IK08 |
| Version for | Profiled |
| Kullanılabilir sıcaklık aralığı min. | -15 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 80x2000mm |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,5657 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Colour
Item no.
GK-OTKRW
2000
Pure white; RAL 9010
6278780
GK-OTKCW
2000
Cream; RAL 9001
6278781
GK-OTKLGR
2000
Light grey; RAL 7035
6278782
Colour
GK-OTKRW
Item no.
6278780
Length
2000
Colour
Pure white; RAL 9010
GK-OTKCW
Item no.
6278781
Length
2000
Colour
Cream; RAL 9001
GK-OTKLGR
Item no.
6278782
Length
2000
Colour
Light grey; RAL 7035
