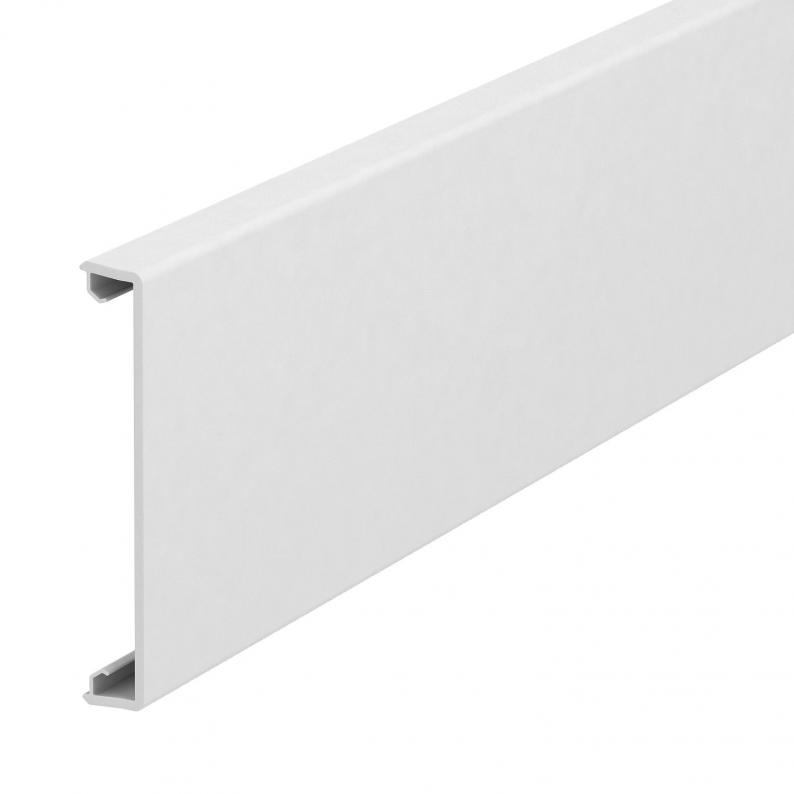

Plastic trunking cover, smooth

Plastic trunking cover, smooth

Type GK-OTGRW
|
Item no. 6278680
|
EAN 4012195666400
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

Smooth trunking cover, for closing device installation trunking with 76.5 mm system opening.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

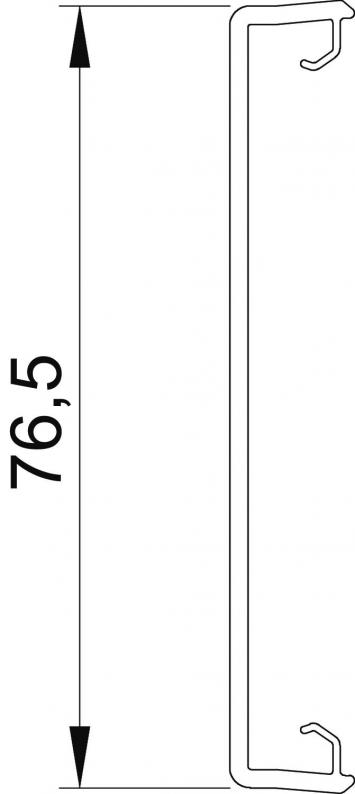

Dimensions

Length2000 mm
Width76,5 mm
Height12 mm

Technical data

Koruma sınıfıIP30
Üst parçaların montaj şekliInternal
Protection rating IK codeIK08
Version forSmooth
Kullanılabilir sıcaklık aralığı min.-15 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut80x2000mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,5366 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-OTGRW
Item no.
6278680
Length
2000
Colour
Pure white; RAL 9010
GK-OTGCW
Item no.
6278681
Length
2000
Colour
Cream; RAL 9001
GK-OTGLGR
Item no.
6278682
Length
2000
Colour
Light grey; RAL 7035
GK-OTGGR
Item no.
6278686
Length
2000
Colour
Stone grey; RAL 7030
