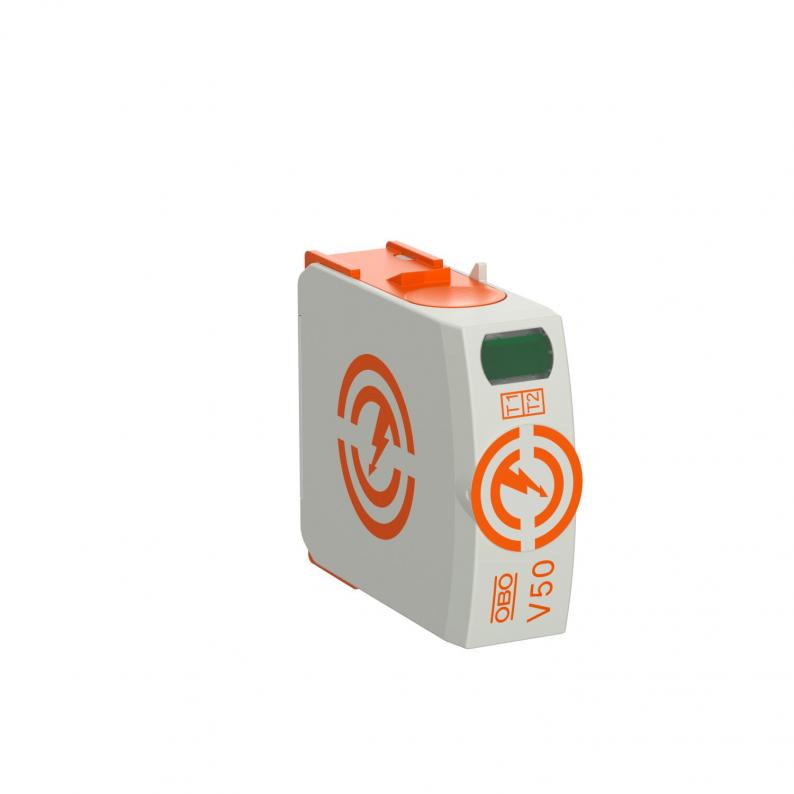

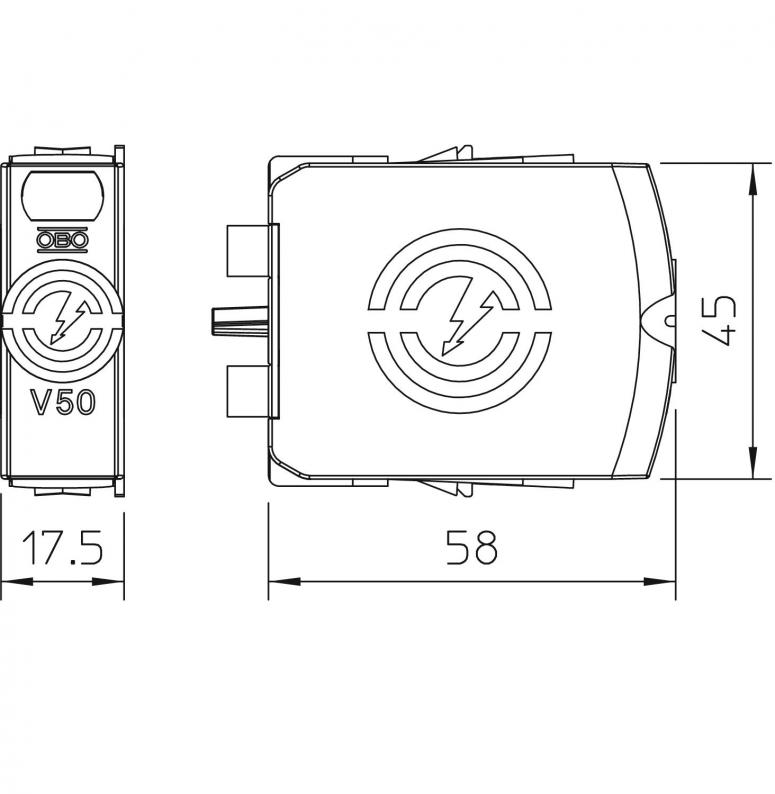

Plug-in arrester V50 150 V

Plug-in arrester V50 150 V

Type V50-0-150
|
Item no. 5093505
|
EAN 4012196153718
Show all variants
Item no. / Type
Maximum continuous voltage AC

Smallest selling unit: 1 piece

piece

Description

Combination arrester, type 1+2


• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• Lightning current discharge capacity of 12.5 kA (10/350) per pole

• Modular, plug-in arrester with dynamic cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic (UL 94 V-0)
  • KEMA-KEUR, Hollanda
  • Österreichischer Verband für Elektrotechnik, Avusturya(ÖVE)
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Underwriters Laboratories Inc., USA + CSA, Kanada
  • 5 yıl garanti
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • EurAsian Conformity
  • LPZ 0'dan 2'ye kadar geçiş.
  • Tip 1 ve Tip 2'den oluşan kombine koruma cihazı
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Kutup sayısı1
Ağ formuAll
Söndürmelino
Cihazda sinyalizasyonVisual
Koruma sınıfıIP20
En yüksek sürekli gerilim (L-N)150 V
Anma deşarj akımı (8/20) (L-N)30 kA
Housing material surge protection componentsPA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]50 kA
Remote signallingno
Nominal voltage AC (50/60 Hz)120 V
Integrated back-up fuseno
Lightning surge current (10/350 μs)12,5 kA
Koruma seviyesi [L-N]≤0,8
Maximum continuous voltage AC150 V
Nominal discharge current (8/20 µs)30 kA
Pole version1
Installation typeDIN rail 35 mm
Max. mains-side overcurrent protection160 A gL/gG
Residual voltage [L-N] @ 5 kA0,5 kV
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Residual voltage [L-N] @ 1 kA0,4 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s175 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.230 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsVDE, KEMA, UL, ÖVE
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
Torque4 Nm
SPD to IEC 61643-1Class I+II
EN 61643-11 standardına göre talep sınıfıType 1+2
Maximum discharge current (8/20 μs)50 kA
Devreye girme süresi<25 ns
Maximum back-up fuse160 A
Kullanılabilir sıcaklık aralığı min.-40 °C
Kullanılabilir sıcaklık aralığı maks.80 °C
Residual voltage [L-N] @ 12.5 kA0,6 kV
Boyut150V
Humidity, max.95 %
Humidity, min.5 %

Connectivity options

Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, flexible (fine-wire), max.35 mm²
Connection cross-section, FM terminals, min.0,5 mm²
Connection cross-section, FM terminals, max.1,5 mm²
Connection cross-section, FM terminals, min.21 AWG
Connection cross-section, FM terminals, max.16 AWG
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, flexible (fine-wire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,1864 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (5)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Maximum continuous voltage AC
V50-0-150
Item no.
5093505
Koruma sınıfı
IP20
Maximum continuous voltage AC
150
Pole version
1
V50-0-280
Item no.
5093508
Koruma sınıfı
IP20
Maximum continuous voltage AC
280
Pole version
1
V50-0-320
Item no.
5093509
Koruma sınıfı
IP20
Maximum continuous voltage AC
320
Pole version
1
V50-0-385
Item no.
5093510
Koruma sınıfı
IP20
Maximum continuous voltage AC
385
Pole version
1
