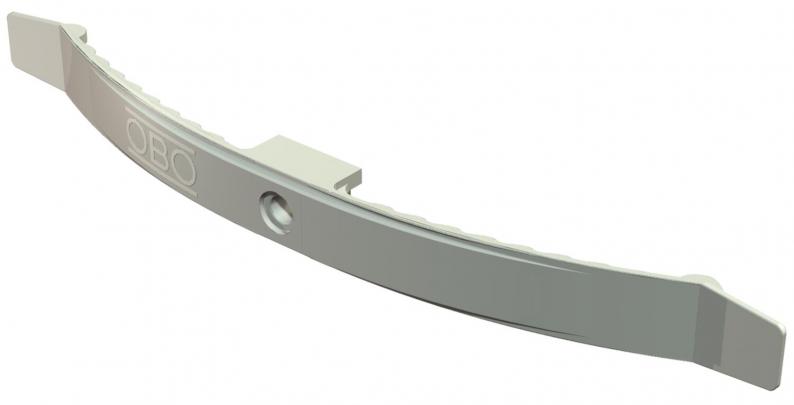

Pressure clip for 10 cables
Type 2034 SP
|Item no. 2204991
|EAN 4012195597797
Item no. / Type
Smallest selling unit: 100 piece
100piece
piece
Description
Standard version for general use, e.g. on intermediate ceilings and partition walls.

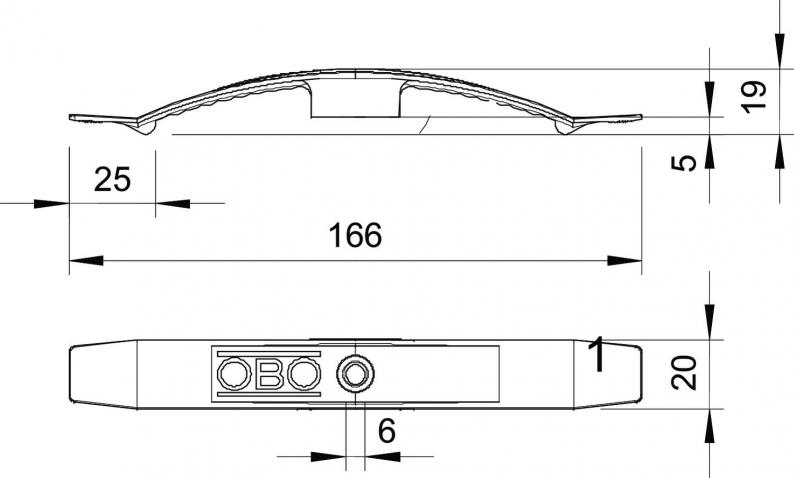

Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2034 for max. 10 cables NYM 3 x 1.5 mm²
Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2034 for max. 10 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 10 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| Dimension | 2x5 NYM3x1,5 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
Environmental Data
0,0492 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0492 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0492 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
