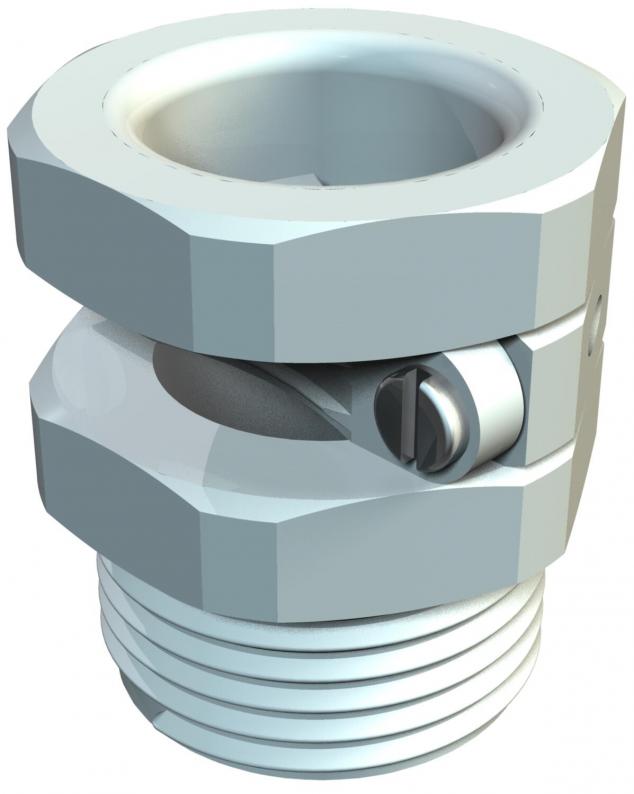

Pressure screw, PG strain relief 107

Pressure screw, PG strain relief 107

Type 107 Z PG 9 PA
|
Item no. 2023091
|
EAN 4012195161653
Show all variants
Item no. / Type
Nominal thread size

Smallest selling unit: 100 piece

piece

Description

Enine çekme yükünü azaltan askılı sıkıştırma vidası, çelik vidalar, elektro galvaniz kaplama, DIN 40430'a uygun PG vida dişi.
  • Halojen içermez; Klor, flüor ve brom içermez
  • Pg vida dişi
  • Packaging without plastic
  • CO₂ footprint (PCF)

Technical data

Technical data

Darbeye dayanıklıhayır
Halojen İçermezevet
Cam elyafı takviyelihayır
Çekme yükü azaltma imkanıevet
Thread increase1,41 mm
Nominal thread size9
WAF19
Thread typePG
BoyutPG9
MaterialPolyamide
ColourLight grey; RAL 7035
Clamping range, min.3,5 mm
Clamping range, max.11,3 mm

Dimensions

Dimension L18,5 mm
Dimension L214,5 mm
Dimension E21 mm

Environmental Data

Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,0166 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
Tender specifications (1)

Variants

Nominal thread size
107 Z PG 9 PA
Item no.
2023091
Nominal thread size
9
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
107 Z PG11 PA
Item no.
2023113
Nominal thread size
11
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
107 Z PG13.5 PA
Item no.
2023121
Nominal thread size
13,5
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
107 Z PG16 PA
Item no.
2023164
Nominal thread size
16
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
107 Z PG21 PA
Item no.
2023210
Nominal thread size
21
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
107 Z PG29 PA
Item no.
2023296
Nominal thread size
29
Thread type
PG
Material
Polyamide
Colour
Light grey; RAL 7035
