Profile earth rod with connecting lug
Type 213 1000 DIN
|Item no. 5003008
|EAN 4012195373575
Item no. / Type
Length
Smallest selling unit: 1 piece
1piece
piece
Description
213/DIN: Profil çubuk topraklayıcı

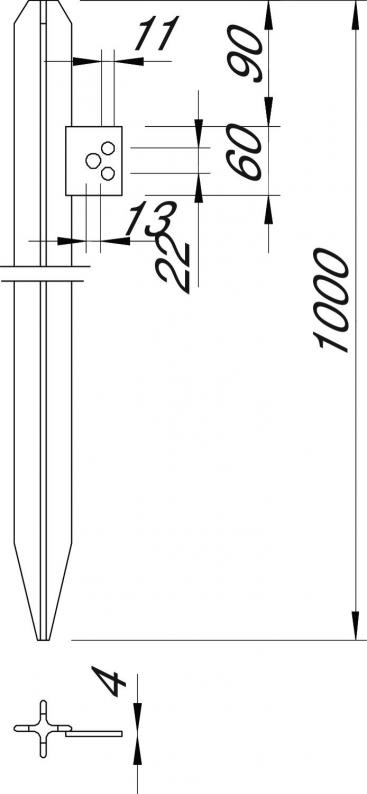

• X şekilli profil 50 x 50 x 3 mm
• Bağlantı kulakçığı
• 13 mm çapında 1 adet delik
• 11 mm çapında 2 adet delik
• X şekilli profil 50 x 50 x 3 mm
• Bağlantı kulakçığı
• 13 mm çapında 1 adet delik
• 11 mm çapında 2 adet delik
Technical data
Dimensions
| Length | 1000 mm |
|---|---|
| Dimension L | 1000 mm |
Technical data
| Profile type | Cross |
|---|---|
| Boyut | 1000mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 5,2583 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Item no.
213 1000 DIN
1000
5003008
213 1500 DIN
1500
5003016
213 2000 DIN
2000
5003024
213 2500 DIN
2500
5003032
213 3000 DIN
3000
5003040
Length
213 1000 DIN
Item no.
5003008
Length
1000
213 1500 DIN
Item no.
5003016
Length
1500
213 2000 DIN
Item no.
5003024
Length
2000
213 2500 DIN
Item no.
5003032
Length
2500
213 3000 DIN
Item no.
5003040
Length
3000
