Profile rail MS 22 L FT

Profile rail MS 22 L FT

Type MS 22 L 3M FT
|
Item no. 1122742
|
EAN 4012195502517
Show all variants
Item no. / Type
1122742 / MS 22 L 3M FT
Length
3000 mm
Width
40 mm
Height
22,5 mm
Material thickness
2 mm
Surface
Hot-dip galvanised

Smallest selling unit: 3 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)

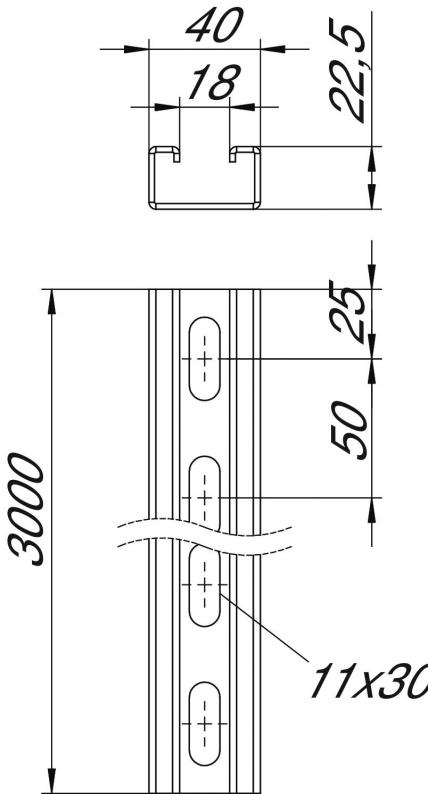

Technical data

Dimensions

Length3000 mm
Width40 mm
Height22,5 mm
Dimension L3000 mm

Technical data

Maintain electrical functionsno
Slot width18 mm
Material thickness2 mm
Static value A1,74 cm²
Static value ly1,19 cm⁴
Static value lz4,46 cm⁴
Static value Wy1,05 cm³
Static value Wz2,23 cm³
Hole size11x30
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension3000x40x22,5
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

3,3147 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate3,3147 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

MS 22 L 3M FT
Item no.
1122742
Length
3000
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
