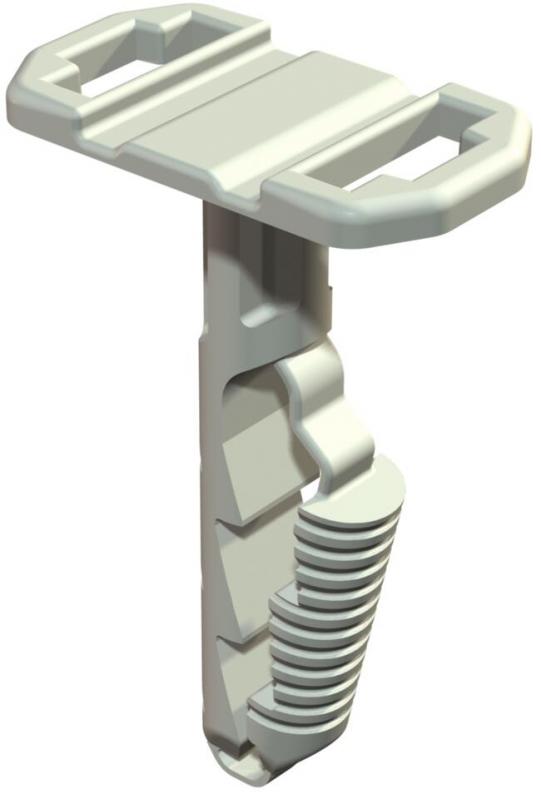

Push-fit anchor for cable ties
Type 910 STK 6x30
|Item no. 2351609
|EAN 4012195708971
Item no. / Type
2351609 / 910 STK 6x30
Length
30 mm
Diameter
6 mm
Breaking load for concrete B25
260 N
Drill hole diameter, min.
6 mm
Drill hole depth
35 mm
Smallest selling unit: 100 piece
100piece
piece
Description
The push-fit anchor can accept a cable tie (type 550 or 555) up to 9 mm wide, which can be used to install several cables and pipes.
Suitable for concrete, lime sandstone and brickwork as solid brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
Suitable for concrete, lime sandstone and brickwork as solid brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
Technical data
Dimensions
| Length | 30 mm |
|---|
Technical data
| Diameter | 6 mm |
|---|---|
| Halogen-free | yes |
| Breaking load for concrete B25 | 260 N |
| With bolts | no |
| Suitable for hexagonal wood screw | no |
| Suitable for fastening with cable ties | yes |
| Version for | Push-fit anchor |
| Drill hole diameter, min. | 6 mm |
| Drill hole depth | 35 mm |
| Dimension | 6x30mm |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
Environmental Data
0,0058 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0058 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0058 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
