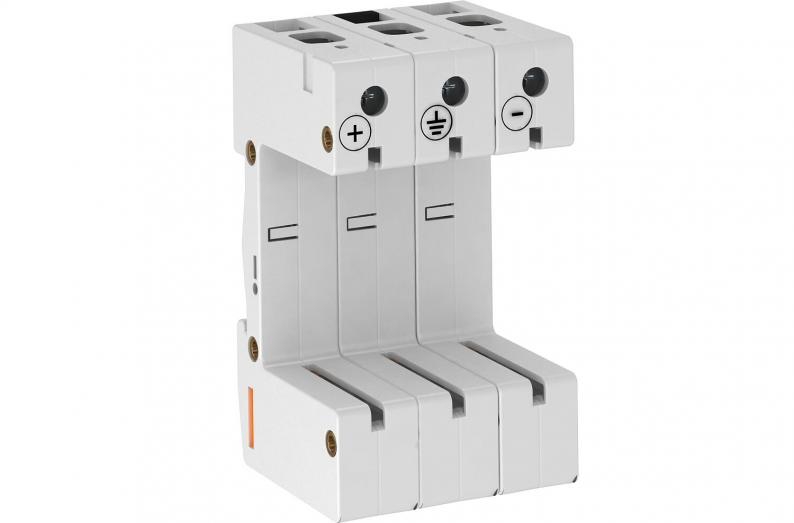

PV base, 3-pole in Y circuit

PV base, 3-pole in Y circuit

Type V20-C U-3PH-Y
|
Item no. 5096647
|
EAN 4012195299455
Show all variants
Item no. / Type
5096647 / V20-C U-3PH-Y

Smallest selling unit: 1 piece

piece

Description

Base for photovoltaic systems up to Voc = 1,000 V (Y-circuit)

• Suitable for V 25-B+C upper parts, type 1+2, combination arresters
• Suitable for V 20-C upper parts, type 2, surge arresters
• Protection circuit against transverse and longitudinal voltages
• Y-protection circuit
• Low DC voltage protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-440)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-385)
• Low DC voltage protection level: < 2.6 kV (Voc max = 600 V DC with V50-C/0-280)
• Labelled connections

Application: In photovoltaic systems between PH modules and inverters.
  • 5 yıl garanti
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Tip 1 ve Tip 2'den oluşan kombine koruma cihazı
  • DIN EN 61643-11 veya IEC 61643-11 standartlarına uygun koruma cihazı
  • LPZ 0'dan 1'e geçiş
  • LPZ 1'den 2'ye geçiş
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

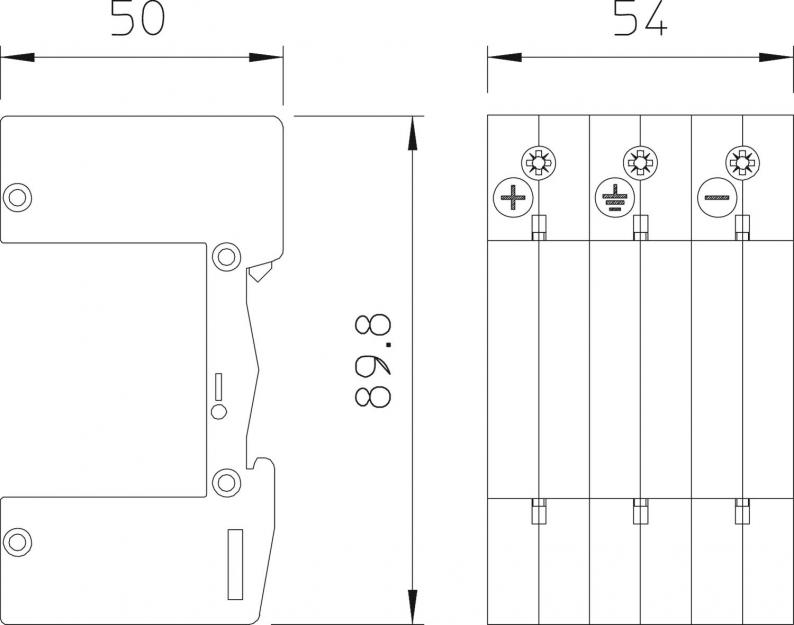

Technical data

Technical data

Koruma sınıfıIP20
Pole version3
Version for3-pole Y circuit for PV
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
Kullanılabilir sıcaklık aralığı min.-40 °C
Kullanılabilir sıcaklık aralığı maks.80 °C
BoyutY-PH

Connectivity options

Conductor cross-section, rigid (single-wire/multiwire), min.2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,5753 kg CO2e / 1 Piece
